Eclipse Dirigible Observability Unlocked Using OpenTelemetry

Overview

In today’s fast-paced software development landscape, observability has become a cornerstone of resilient and high-performing systems. Observability is more than just logs, metrics, and traces — it’s about gaining actionable insights into how your software behaves in production.

That’s where OpenTelemetry comes in, a powerful, vendor-neutral framework that simplifies collecting telemetry data and integrates seamlessly with major providers like Google Cloud Platform, AWS, and Azure.

In our Eclipse Dirigible project, we embraced OpenTelemetry to enhance our observability practices. By instrumenting components such as Quartz jobs, Flowable BPM processes, Apache Camel routes, and TypeScript/JavaScript script executions, we achieved a comprehensive view of our system’s behavior. Additionally, we exposed Spring Boot Actuator Metrics to provide even deeper insights into application health and performance.

In this blog, we showcase the architecture of our local setup, provide step-by-step instructions to run it locally, and share examples of traces, metrics, and logs generated from a sample Dirigible project.

Local OpenTelemetry stack

As part of our observability implementation, we prepared a local OpenTelemetry stack implemented with Docker Compose, featuring OpenTelemetry Collector, Jaeger, Prometheus, Loki, and Grafana. While this setup enables powerful local monitoring, OpenTelemetry is versatile and can be integrated with any OpenTelemetry-compliant stack that supports it.

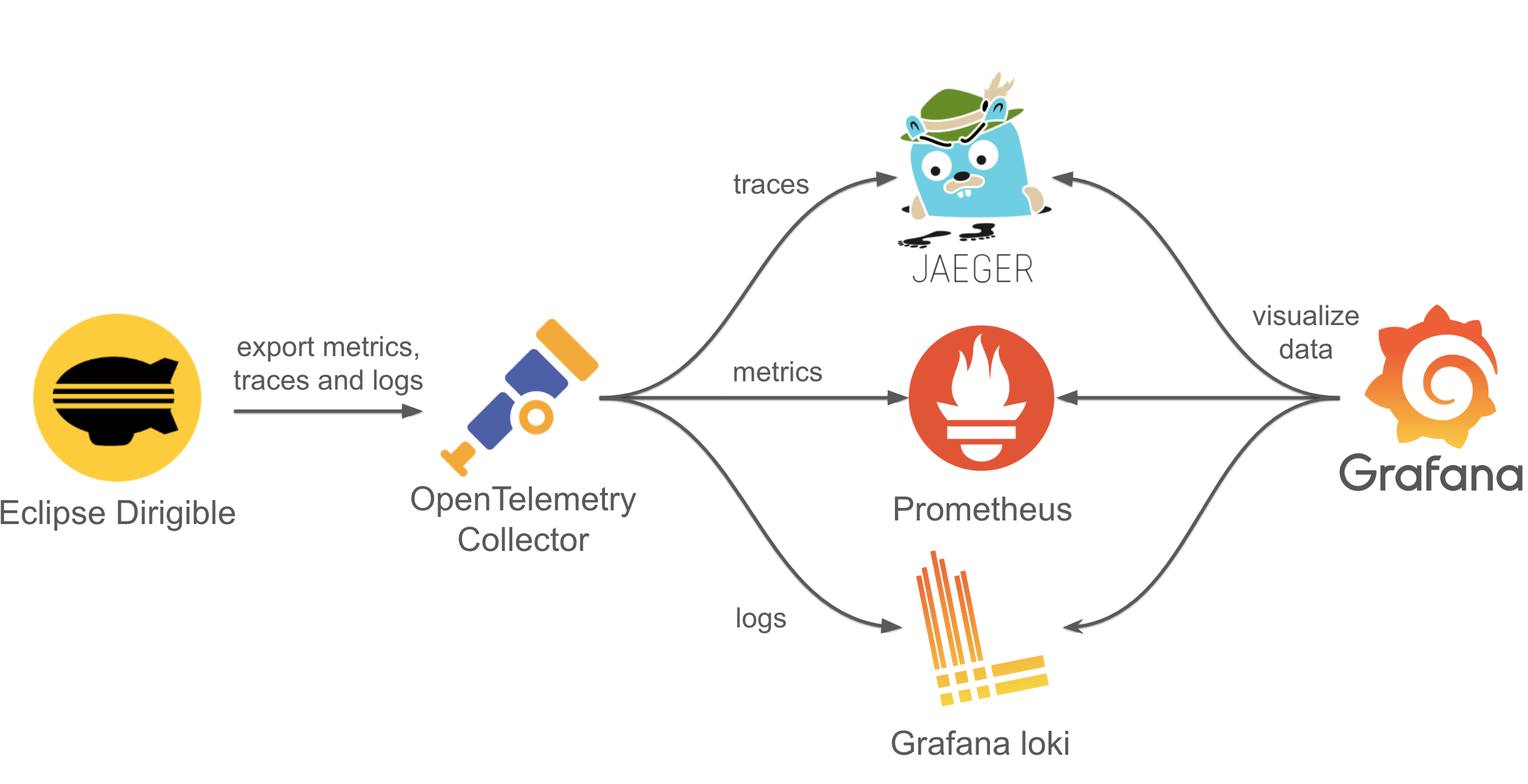

Architecture

To better understand how the components interact within our local setup, let's take a look at the architecture. The following diagram illustrates the flow of telemetry data through the system, showcasing how OpenTelemetry Collector integrates with Jaeger, Prometheus, Loki, and Grafana for comprehensive monitoring.

Run steps

There are different Docker Compose profiles which helps you to run the local OpenTelemetry stack depending on your scenario. In this blog we will run the profile which starts OpenTelemetry Collector, Jaeger, Prometheus, Loki, Grafana and latest Eclipse Dirigible image with configured OpenTelemetry Agent. More details about the different profiles could be found in this README.

git clone --branch 10.6.34 https://github.com/eclipse/dirigible.git dirigible
cd dirigible/open-telemetry

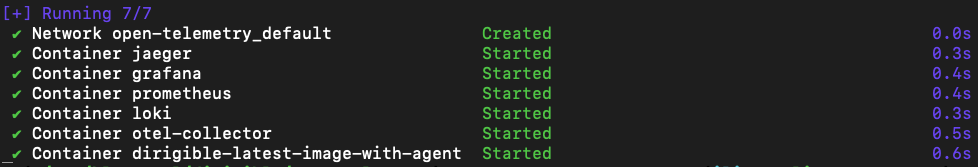

docker compose --profile dirigible-latest-image-with-agent up --detach --build

Once started, all containers could be accessed using the following URLs:

Container	URL
Eclipse Dirigible	http://localhost:8080
Prometheus	http://localhost:16686
Jaeger	http://localhost:9090
Loki	http://localhost:3100
Grafana	http://localhost:3000/grafana

Sample Eclipse Dirigible project

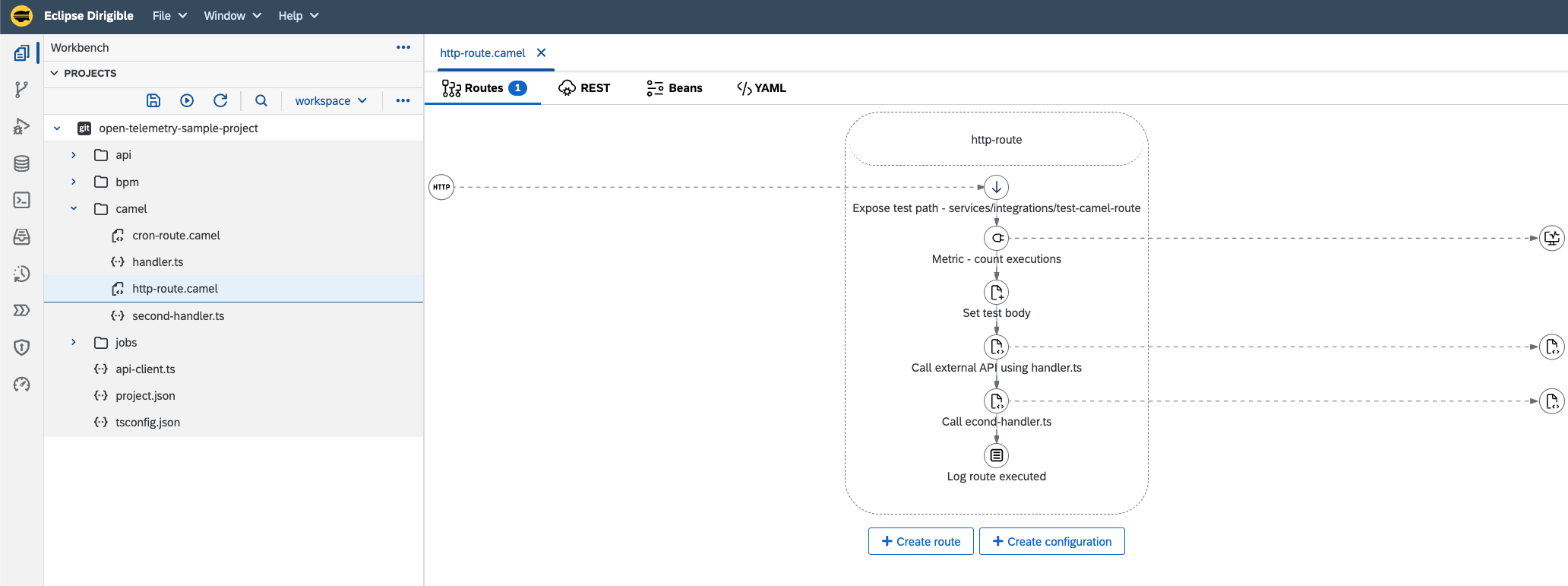

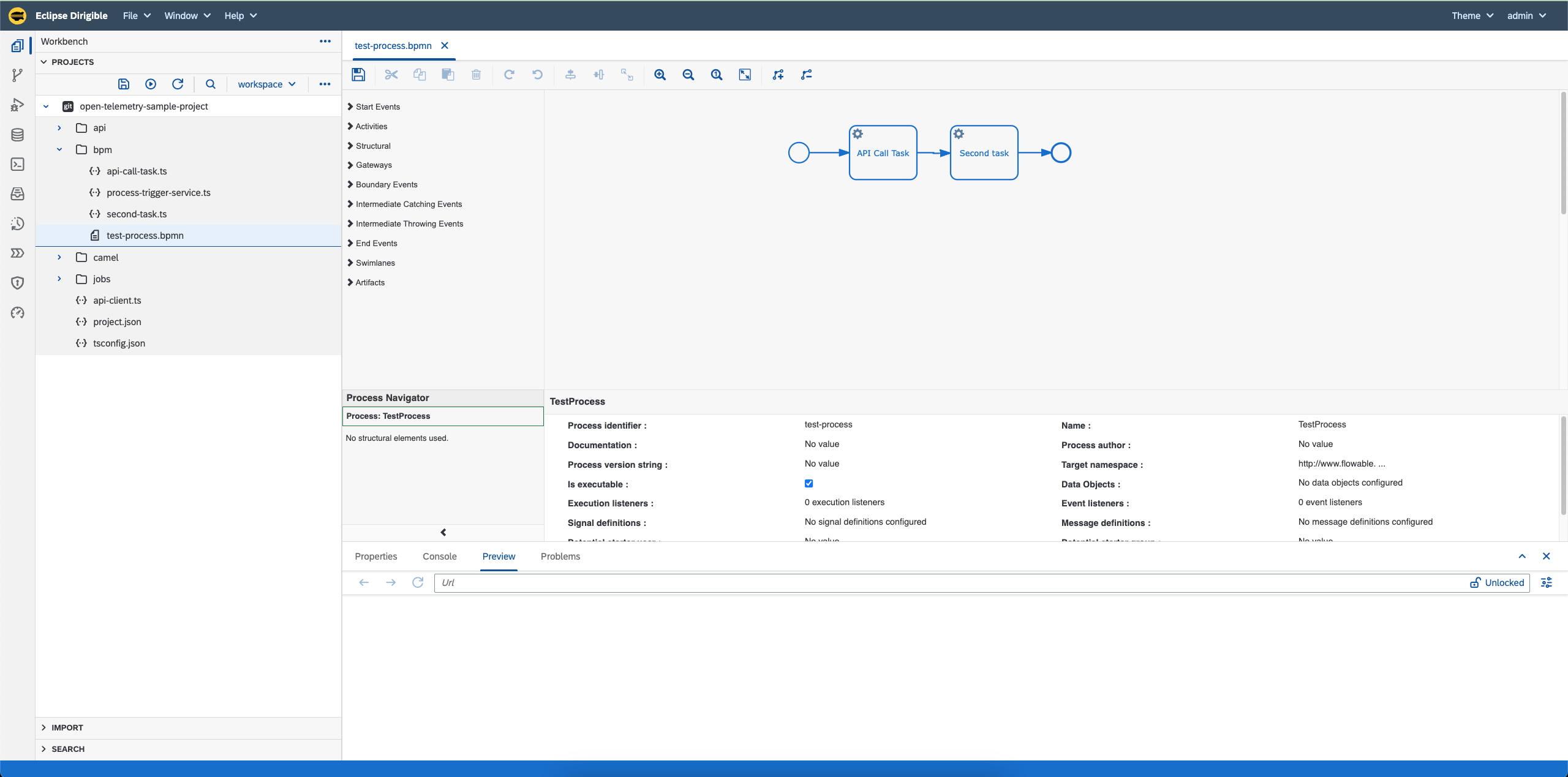

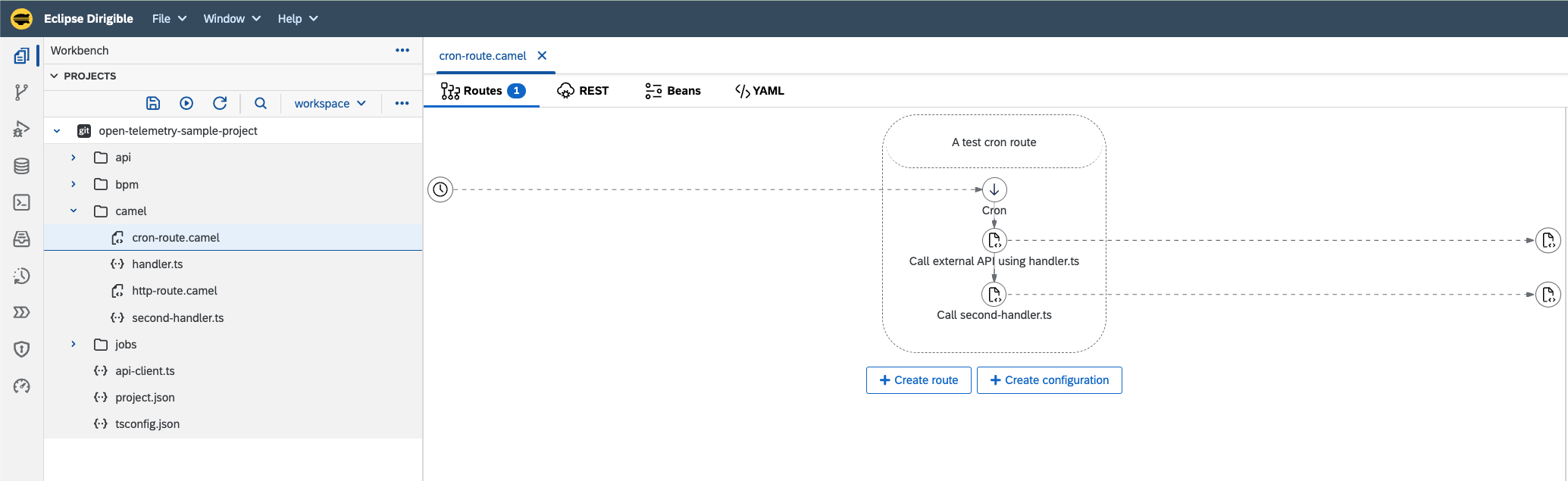

We will use a sample Eclipse Dirigible project to demonstrate the observability functionalities. The project is located in this GitHub repository. It contains some common functionalities used in Eclipse Dirigible projects - REST endpoint, BPM (Flowable) process, asynchronous job (Quartz) and Camel routes.

To run the application, follow the steps:

• Open Eclipse Dirigible UI at http://localhost:8080 and login using the default credentials admin / admin

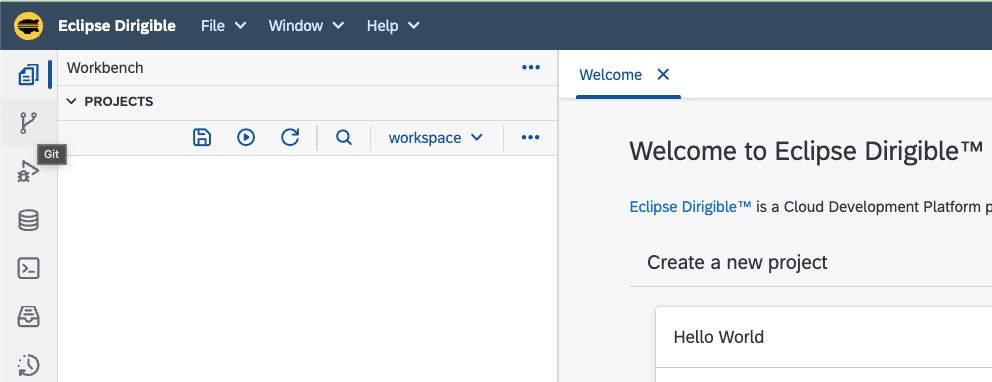

• Go to Git perspective

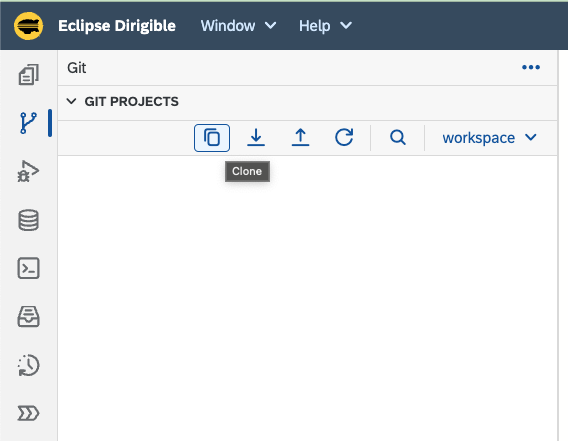

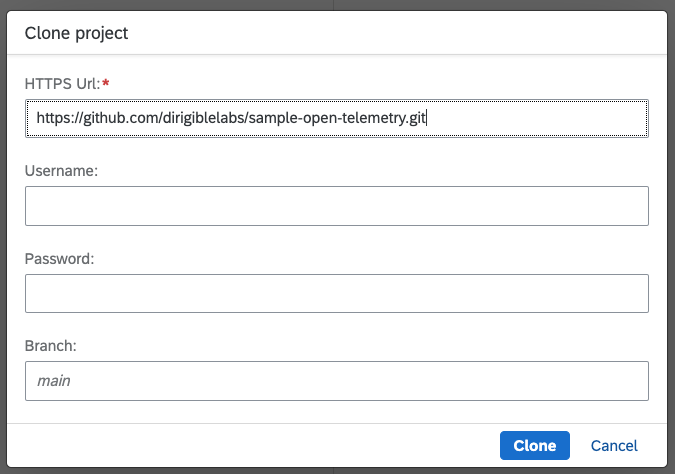

• Click on Clone button

• Set https://github.com/dirigiblelabs/sample-open-telemetry.git for URL and click on Clone button

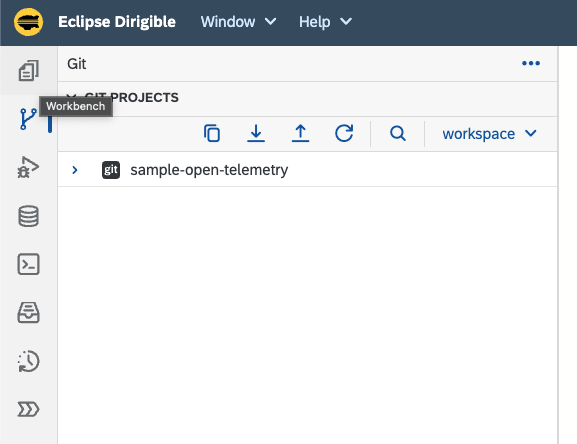

• Go back to the Workbench perspective

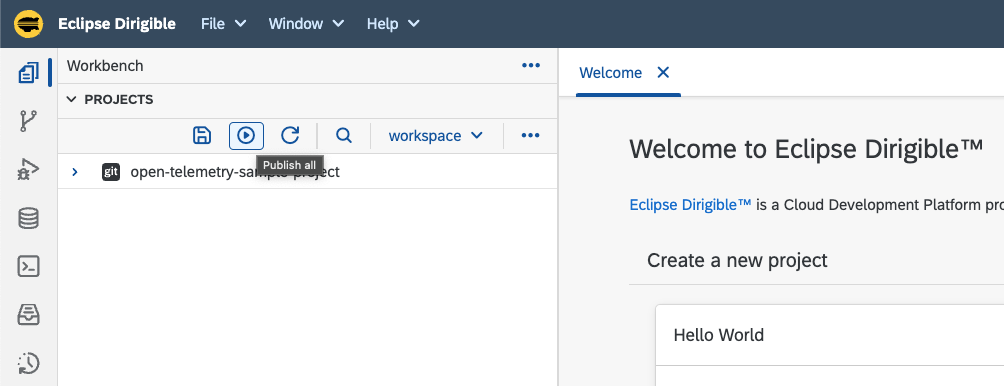

• Click on Publish All button


The sample application is now published and ready to be explored.

Out-of-the-Box telemetry data

OpenTelemetry’s agent instrumentation makes it remarkably easy to capture telemetry data with minimal effort. It provides built-in support for monitoring and collecting telemetry from many popular libraries and frameworks out of the box. It supports frameworks like Apache HttpClient, Quartz, Camel, Spring Web MVC, Java JDBC and so on. For a complete and up-to-date list of frameworks and libraries supported by the OpenTelemetry agent, visit the OpenTelemetry Java Instrumentation GitHub repository.

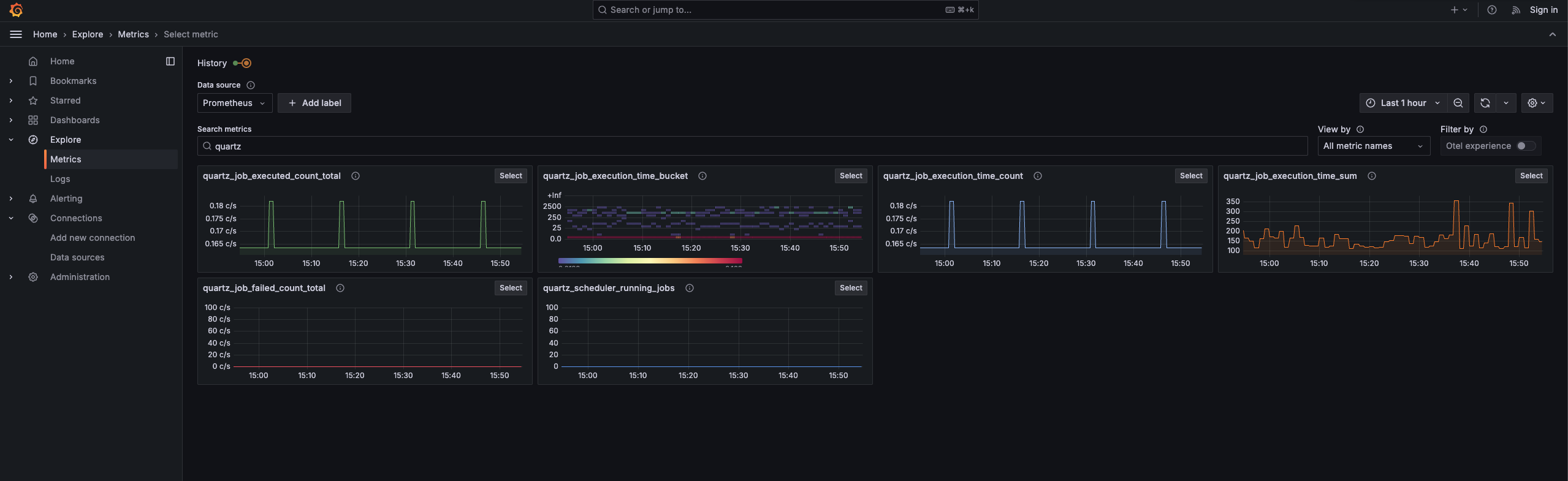

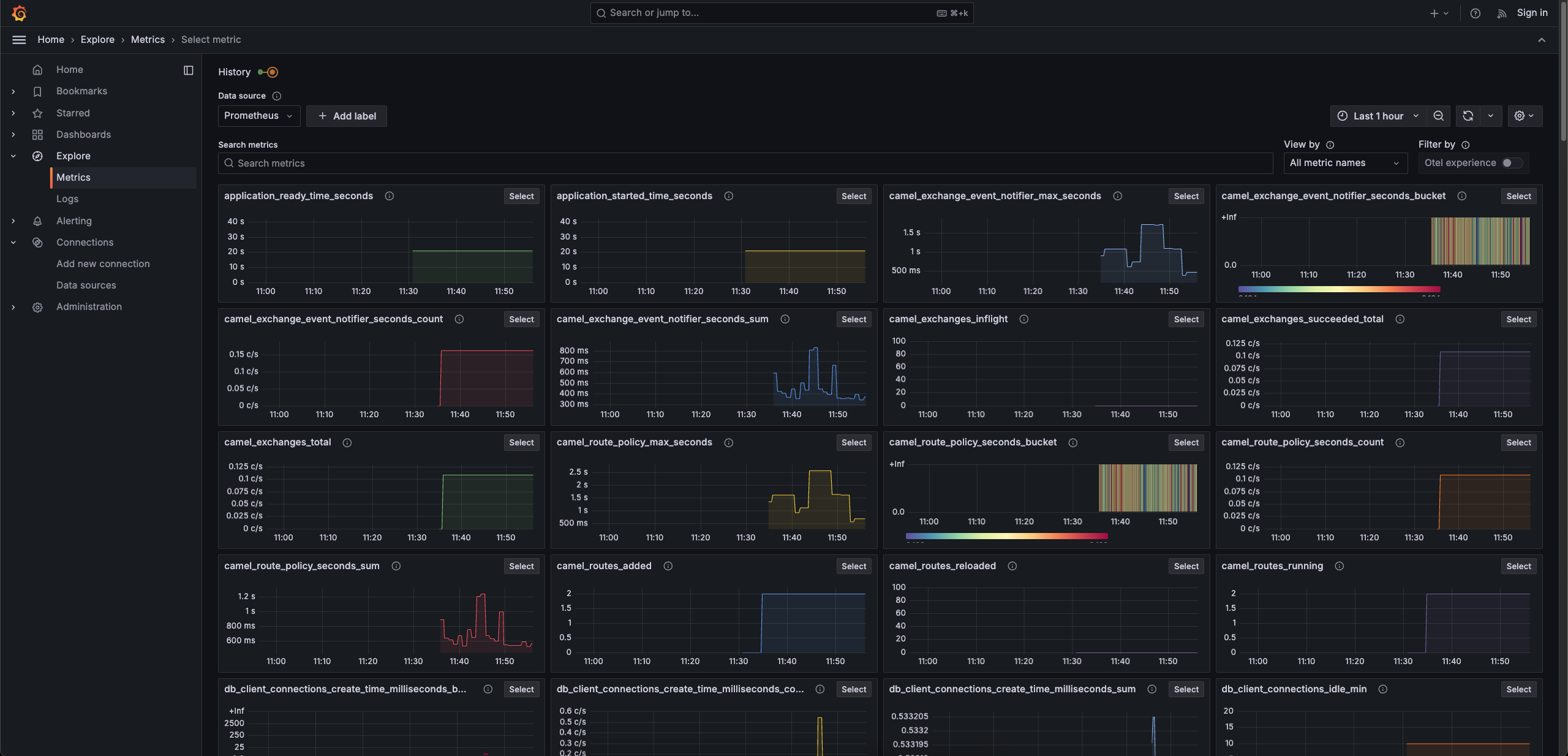

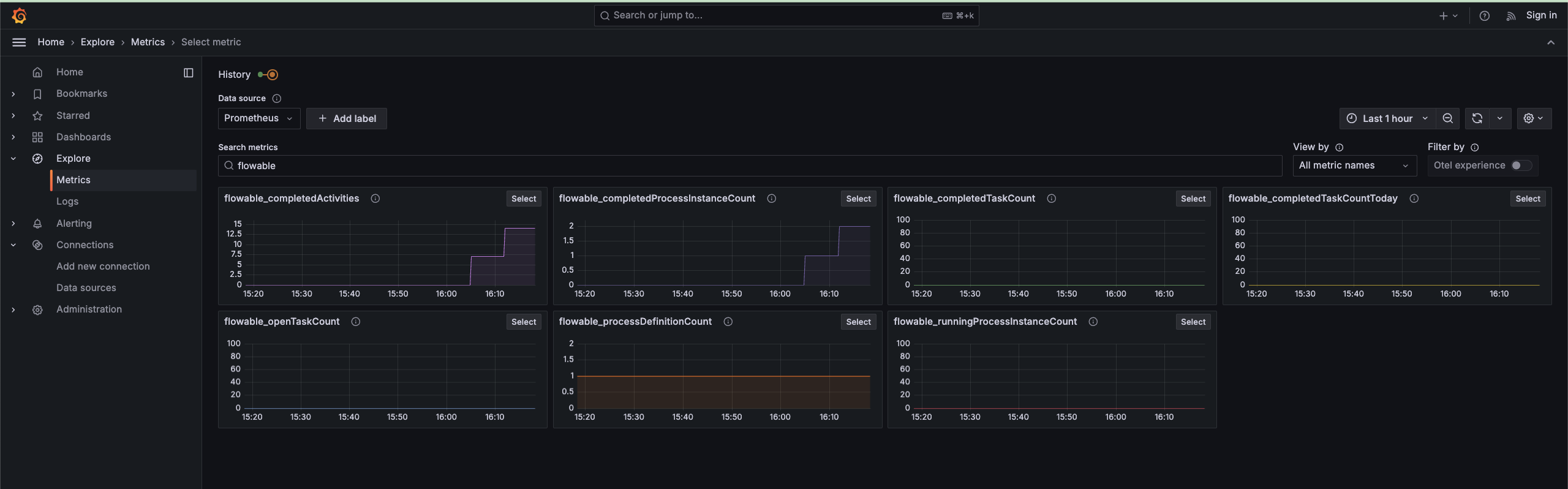

The following JSON examples showcase the generated traces and metrics, captured for our sample Eclipse Dirigible application, by our observability setup.

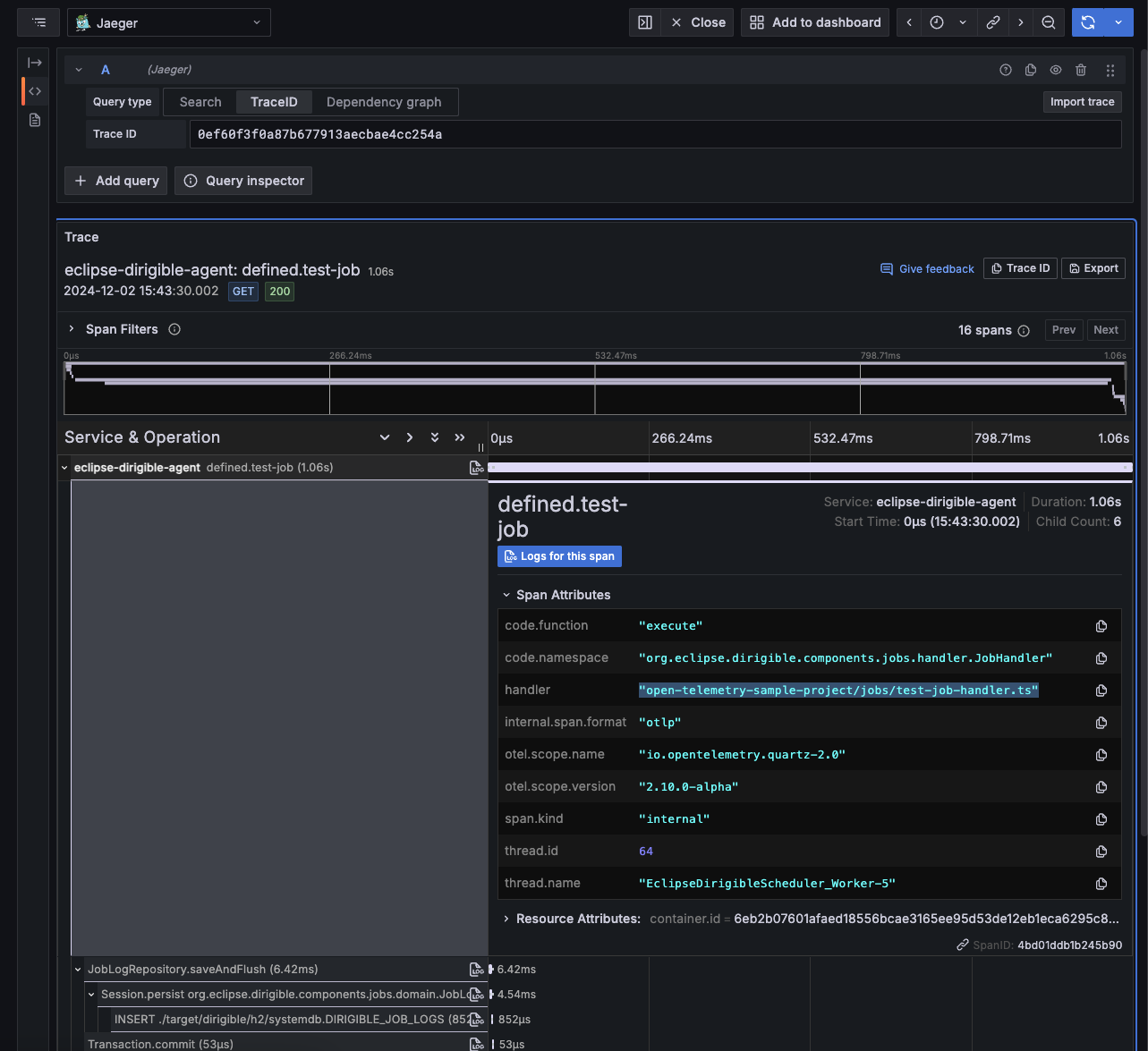

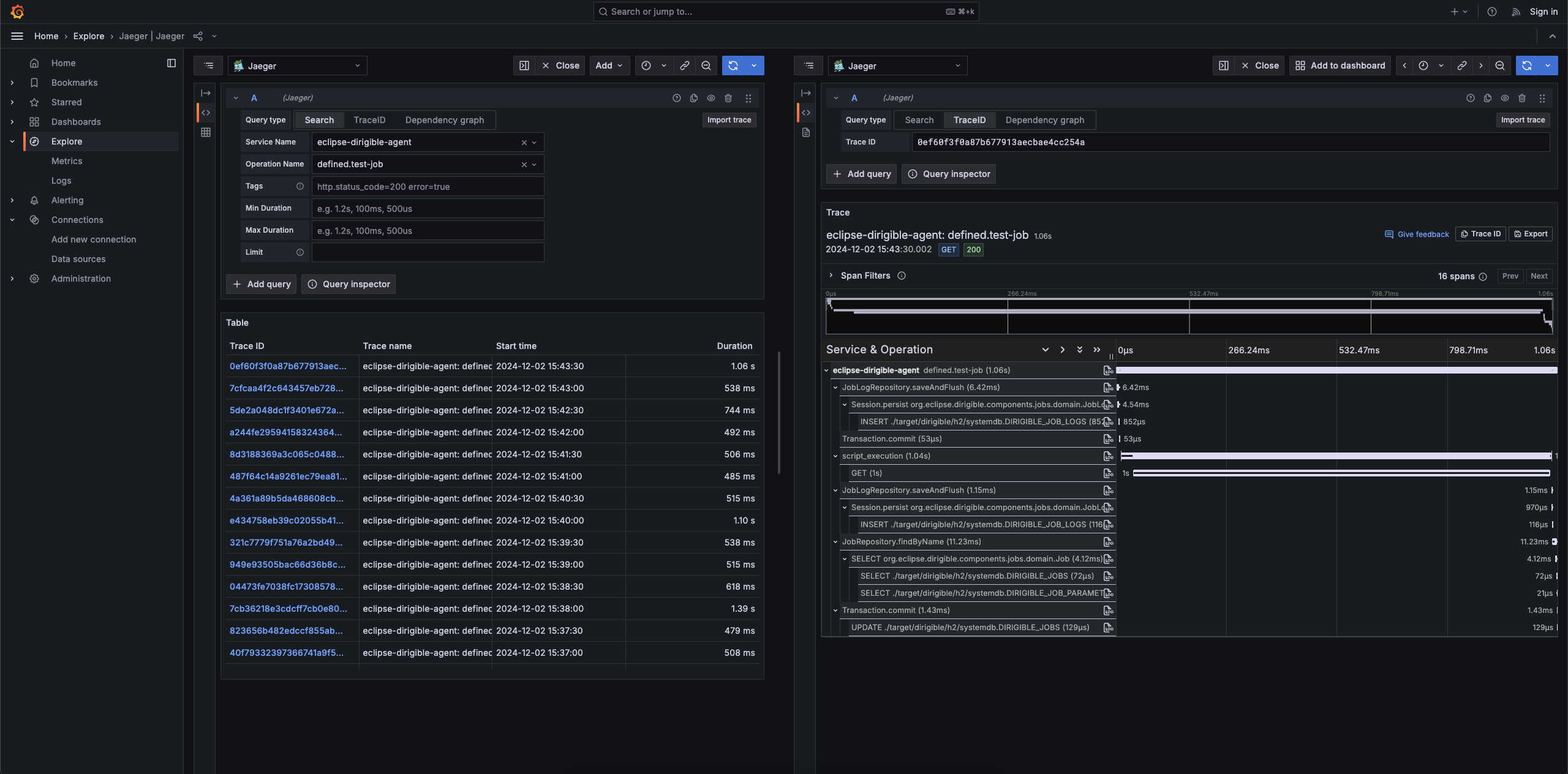

• Traces

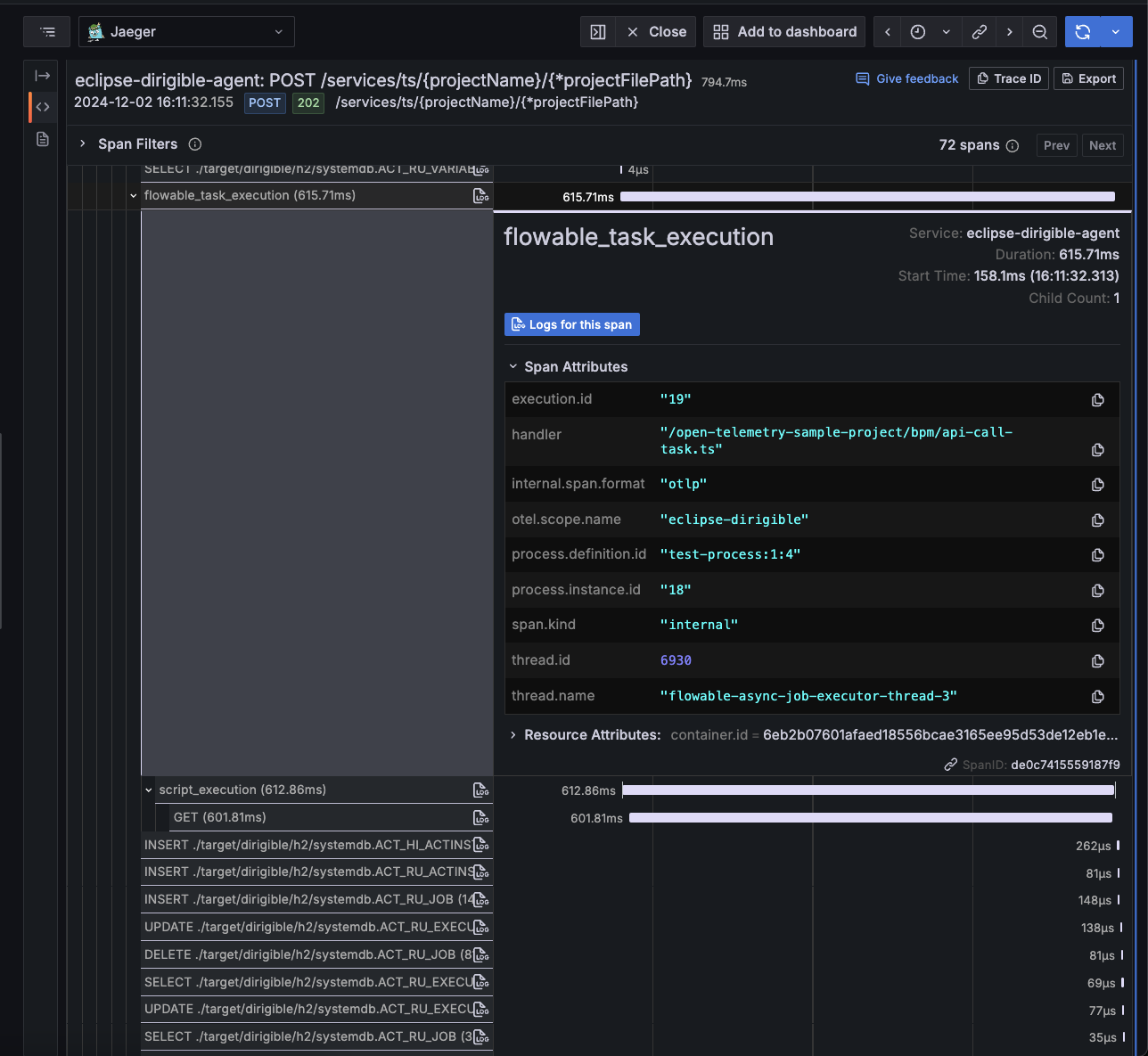

  The traces were exported using the Jaeger API endpoint. For a more detailed exploration, visit the Grafana dashboard or view them through the Jaeger UI.

  Click to expand the traces in JSON

  {
      "data": [
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_LOCKS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.ACT_GE_BYTEARRAY",
              "spanKind": "client"
          },
          {
              "name": "MarkdownRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "Session.persist org.eclipse.dirigible.components.engine.camel.domain.Camel",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_BpmnSynchronizer_parse_execution",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_CamelSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_JOBS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_EXTENSION_POINTS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_SECURITY_ROLES",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_JOB_EMAILS",
              "spanKind": "client"
          },
          {
              "name": "GET /**",
              "spanKind": "server"
          },
          {
              "name": "GET /services/js/{projectName}/{*projectFilePath}",
              "spanKind": "server"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_PROBLEMS",
              "spanKind": "client"
          },
          {
              "name": "GET /services/data/sources",
              "spanKind": "server"
          },
          {
              "name": "Session.persist org.eclipse.dirigible.components.jobs.domain.Job",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.tenants.domain.Tenant",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.store.domain.Entity",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_VIEWS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_ODATA",
              "spanKind": "client"
          },
          {
              "name": "TypeScriptEndpoint.get",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACTIVEMQ_MSGS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_CSVIM",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.data.store.domain.Entity",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_SCHEMAS",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_CRON_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "EntityRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "JavascriptEndpoint.get",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_OPENAPI",
              "spanKind": "client"
          },
          {
              "name": "ODataRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.openapi.domain.OpenAPI",
              "spanKind": "internal"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_FIRED_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.engine.camel.domain.Camel",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_PAUSED_TRIGGER_GRPS",
              "spanKind": "client"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_CALENDARS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_TENANTS",
              "spanKind": "client"
          },
          {
              "name": "WebsocketRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "UserRoleAssignmentRepository.findByUser",
              "spanKind": "internal"
          },
          {
              "name": "SELECT",
              "spanKind": "internal"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.DIRIGIBLE_CAMEL",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.DIRIGIBLE_JOB_LOGS",
              "spanKind": "client"
          },
          {
              "name": "./target/dirigible/h2/systemdb",
              "spanKind": "client"
          },
          {
              "name": "CREATE INDEX ./target/dirigible/h2/systemdb",
              "spanKind": "client"
          },
          {
              "name": "defined.synchronize",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/ide/problems/search",
              "spanKind": "server"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DEFINITIONS",
              "spanKind": "client"
          },
          {
              "name": "Session.persist org.eclipse.dirigible.components.engine.bpm.flowable.domain.Bpmn",
              "spanKind": "internal"
          },
          {
              "name": "JobRepository.findByName",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.sources.domain.DataSource",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.QRTZ_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_WebsocketsSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "GET",
              "spanKind": "client"
          },
          {
              "name": "CamelRepository.findByKey",
              "spanKind": "internal"
          },
          {
              "name": "cron",
              "spanKind": "server"
          },
          {
              "name": "synchronizer_BpmnSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_JOB_DETAILS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_CONFLUENCE",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_OpenAPISynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "HttpServletResponseWrapper.sendError",
              "spanKind": "internal"
          },
          {
              "name": "DELETE ./target/dirigible/h2/systemdb.QRTZ_FIRED_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "GET /services/data/definition/{datasource}",
              "spanKind": "server"
          },
          {
              "name": "ExtensionRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "SchemaRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "DataSourceRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_LISTENERS",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_JobSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "OpenAPIRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "ProblemRepository.count",
              "spanKind": "internal"
          },
          {
              "name": "TopologicalDepleter.deplete",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.extensions.domain.Extension",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/data/metadata/{datasource}",
              "spanKind": "server"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.initializers.definition.Definition",
              "spanKind": "internal"
          },
          {
              "name": "ListenerRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_SIMPLE_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_DataSourcesSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "OnCommittedResponseWrapper.sendRedirect",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.engine.wiki.domain.Markdown",
              "spanKind": "internal"
          },
          {
              "name": "CREATE ./target/dirigible/h2/defaultdb",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_HI_TASKINST",
              "spanKind": "client"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_SIMPROP_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "JobLogRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "TableRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.engine.camel.domain.Camel",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_BPMN",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.ACTIVEMQ_LOCK",
              "spanKind": "client"
          },
          {
              "name": "POST /*",
              "spanKind": "server"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.DIRIGIBLE_DEFINITIONS",
              "spanKind": "client"
          },
          {
              "name": "ALTER table ./target/dirigible/h2/systemdb",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_ExtensionsSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.QRTZ_SIMPLE_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_SECURITY_ACCESS",
              "spanKind": "client"
          },
          {
              "name": "ViewRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_ENTITIES",
              "spanKind": "client"
          },
          {
              "name": "BpmnRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.structures.domain.Table",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.odata.domain.OData",
              "spanKind": "internal"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.data.sources.domain.DataSource",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_ExtensionPointsSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "Transaction.commit",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.extensions.domain.ExtensionPoint",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_CAMEL",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_EXTENSIONS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_WEBSOCKETS",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.engine.bpm.flowable.domain.Bpmn",
              "spanKind": "internal"
          },
          {
              "name": "EntityRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_RU_TASK",
              "spanKind": "client"
          },
          {
              "name": "GET /services/data/metadata/",
              "spanKind": "server"
          },
          {
              "name": "defined.test-job",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_TABLES",
              "spanKind": "client"
          },
          {
              "name": "GET /services/js/all-dts",
              "spanKind": "server"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.csvim.domain.Csvim",
              "spanKind": "internal"
          },
          {
              "name": "ProblemRepository.findProblemsByConditionAndLimit",
              "spanKind": "internal"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.DIRIGIBLE_JOBS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.DIRIGIBLE_BPMN",
              "spanKind": "client"
          },
          {
              "name": "WebsocketRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "GET /public/js/{projectName}/{*projectFilePath}",
              "spanKind": "server"
          },
          {
              "name": "SELECT DIRIGIBLE_PROBLEMS",
              "spanKind": "internal"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_SIMPLE_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.jobs.domain.Job",
              "spanKind": "internal"
          },
          {
              "name": "CsvimRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_RU_JOB",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_RE_PROCDEF",
              "spanKind": "client"
          },
          {
              "name": "POST",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_GE_PROPERTY",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.listeners.domain.Listener",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_OPENAPI",
              "spanKind": "client"
          },
          {
              "name": "CREATE table ./target/dirigible/h2/defaultdb",
              "spanKind": "client"
          },
          {
              "name": "JobEmailRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_FIRED_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_CALENDARS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.openapi.domain.OpenAPI",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_DEFINITIONS",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_BLOB_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_SECURITY_ACCESS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.structures.domain.View",
              "spanKind": "internal"
          },
          {
              "name": "DataSourceRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.ACTIVEMQ_ACKS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "system.TenantsProvisioningJob",
              "spanKind": "internal"
          },
          {
              "name": "AccessRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACTIVEMQ_ACKS",
              "spanKind": "client"
          },
          {
              "name": "RoleRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_LOCKS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_JOB_PARAMETERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.security.domain.Access",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_PROCDEF_INFO",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_LOCKS",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_WEBSOCKETS",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.QRTZ_SCHEDULER_STATE",
              "spanKind": "client"
          },
          {
              "name": "ConfluenceRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_SOURCE_PROPERTIES",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_HI_ACTINST",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.ACTIVEMQ_ACKS",
              "spanKind": "client"
          },
          {
              "name": "OpenAPIRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_RolesSynchronizer_cleanup_execution",
              "spanKind": "internal"
          },
          {
              "name": "DefinitionRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "OnCommittedResponseWrapper.sendError",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_JOB_DETAILS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.websockets.domain.Websocket",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/web/{*path}",
              "spanKind": "server"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_USERS",
              "spanKind": "client"
          },
          {
              "name": "CamelRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_EntitySynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "SELECT INFORMATION_SCHEMA.SEQUENCES",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb",
              "spanKind": "client"
          },
          {
              "name": "TenantRepository.findByStatus",
              "spanKind": "internal"
          },
          {
              "name": "WebSocketMessageBrokerStats$$Lambda.run",
              "spanKind": "internal"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.ACTIVEMQ_MSGS",
              "spanKind": "client"
          },
          {
              "name": "JobRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.jobs.domain.JobEmail",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/ide/workspaces",
              "spanKind": "server"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.ide.problems.domain.Problem",
              "spanKind": "internal"
          },
          {
              "name": "AccessRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {

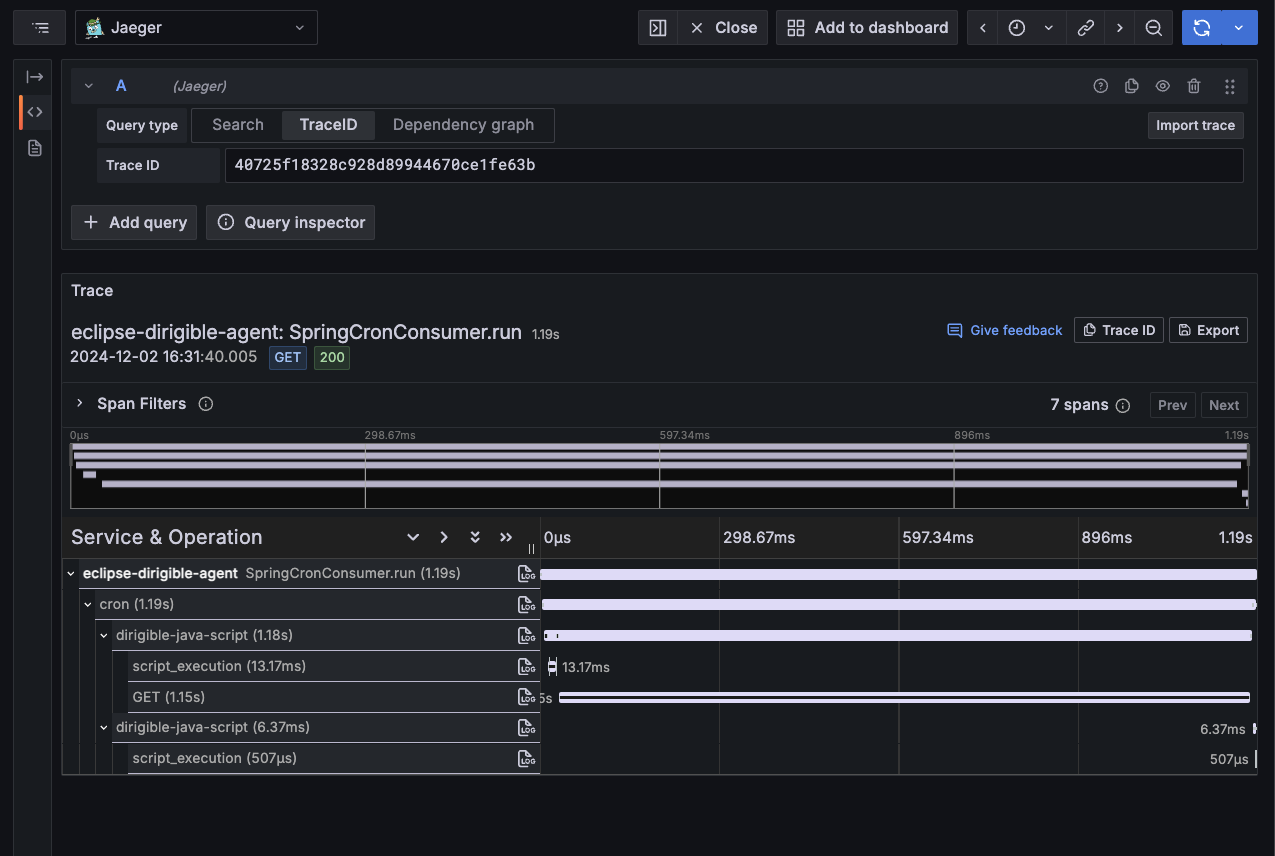

              "name": "SpringCronConsumer.run",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/data/",
              "spanKind": "server"
          },
          {
              "name": "GET /services/data/definition/",
              "spanKind": "server"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_SCHEDULER_STATE",
              "spanKind": "client"
          },
          {
              "name": "ExtensionPointRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.jobs.domain.Job",
              "spanKind": "internal"
          },
          {
              "name": "GET /webjars/**",
              "spanKind": "server"
          },
          {
              "name": "Session.persist org.eclipse.dirigible.components.initializers.definition.Definition",
              "spanKind": "internal"
          },
          {
              "name": "DefinitionRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "JobRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_SOURCES",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.QRTZ_FIRED_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "UserRepository.findUserByUsernameAndTenantId",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_LOCKS",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_FIRED_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.data.structures.domain.Schema",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_SCHEDULER_STATE",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_SIMPROP_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_CRON_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_JOB_DETAILS",
              "spanKind": "client"
          },
          {
              "name": "GET /websockets/ide/console",
              "spanKind": "server"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_PAUSED_TRIGGER_GRPS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_JOBS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_ENTITIES",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.security.domain.Role",
              "spanKind": "internal"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.ACTIVEMQ_MSGS",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.ACTIVEMQ_LOCK",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.extensions.domain.Extension",
              "spanKind": "internal"
          },
          {
              "name": "DefinitionRepository.findOne",
              "spanKind": "internal"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.ACT_GE_PROPERTY",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.initializers.definition.Definition",
              "spanKind": "internal"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.QRTZ_JOB_DETAILS",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.QRTZ_CRON_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "GET /*",
              "spanKind": "server"
          },
          {
              "name": "SELECT information_schema.sequences",
              "spanKind": "client"
          },
          {
              "name": "CREATE table ./target/dirigible/h2/systemdb",
              "spanKind": "client"
          },
          {
              "name": "POST /services/ide/git/{workspace}/clone",
              "spanKind": "server"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_DATA_SOURCES",
              "spanKind": "client"
          },
          {
              "name": "script_execution",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.engine.wiki.domain.Confluence",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_RU_EXTERNAL_JOB",
              "spanKind": "client"
          },
          {
              "name": "UPDATE ./target/dirigible/h2/systemdb.DIRIGIBLE_BPMN",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_CRON_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "system.SynchronizationJob",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_MARKDOWN",
              "spanKind": "client"
          },
          {
              "name": "JobRepository.findByKey",
              "spanKind": "internal"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_PAUSED_TRIGGER_GRPS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.ACTIVEMQ_LOCK",
              "spanKind": "client"
          },
          {
              "name": "POST /services/ide/publisher/{workspace}/{project}/{*path}",
              "spanKind": "server"
          },
          {
              "name": "dirigible-java-script",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_EXTENSIONS",
              "spanKind": "client"
          },
          {
              "name": "BpmnRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_SIMPLE_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "synchronizer_JobSynchronizer_parse_execution",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_CAMEL",
              "spanKind": "client"
          },
          {
              "name": "GET /services/ide/workspaces/{workspace}",
              "spanKind": "server"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.ACT_RE_PROCDEF",
              "spanKind": "client"
          },
          {
              "name": "CREATE TABLE ./target/dirigible/h2/systemdb.QRTZ_SCHEDULER_STATE",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACTIVEMQ_LOCK",
              "spanKind": "client"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.engine.bpm.flowable.domain.Bpmn",
              "spanKind": "internal"
          },
          {
              "name": "Session.persist org.eclipse.dirigible.components.jobs.domain.JobLog",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/ts/{projectName}/{*projectFilePath}",
              "spanKind": "server"
          },
          {
              "name": "DELETE ./target/dirigible/h2/systemdb.ACTIVEMQ_MSGS",
              "spanKind": "client"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.security.domain.Access",
              "spanKind": "internal"
          },
          {
              "name": "GET /services/ide/git/{workspace}/",
              "spanKind": "server"
          },
          {
              "name": "BpmnRepository.findByKey",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_AccessSynchronizer_complete_execution",
              "spanKind": "internal"
          },
          {
              "name": "SELECT org.eclipse.dirigible.components.tenants.domain.UserRoleAssignment",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.DIRIGIBLE_USER_ROLE_ASSIGNMENTS",
              "spanKind": "client"
          },
          {
              "name": "INSERT ./target/dirigible/h2/systemdb.ACT_RE_DEPLOYMENT",
              "spanKind": "client"
          },
          {
              "name": "GET /services/ide/git/{workspace}/{repositoryName}/diff",
              "spanKind": "server"
          },
          {
              "name": "ALTER TABLE ./target/dirigible/h2/systemdb.QRTZ_SIMPLE_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "ExtensionRepository.findAll",
              "spanKind": "internal"
          },
          {
              "name": "Session.merge org.eclipse.dirigible.components.websockets.domain.Websocket",
              "spanKind": "internal"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_CRON_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "GET /services/ide/workspaces/{workspace}/{project}/{*path}",
              "spanKind": "server"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.QRTZ_TRIGGERS",
              "spanKind": "client"
          },
          {
              "name": "SELECT ./target/dirigible/h2/systemdb.ACT_RU_TIMER_JOB",
              "spanKind": "client"
          },
          {
              "name": "CamelRepository.saveAndFlush",
              "spanKind": "internal"
          },
          {
              "name": "synchronizer_CamelSynchronizer_parse_execution",
              "spanKind": "internal"
          }
      ],
      "total": 254,
      "limit": 0,
      "offset": 0,
      "errors": null
  }

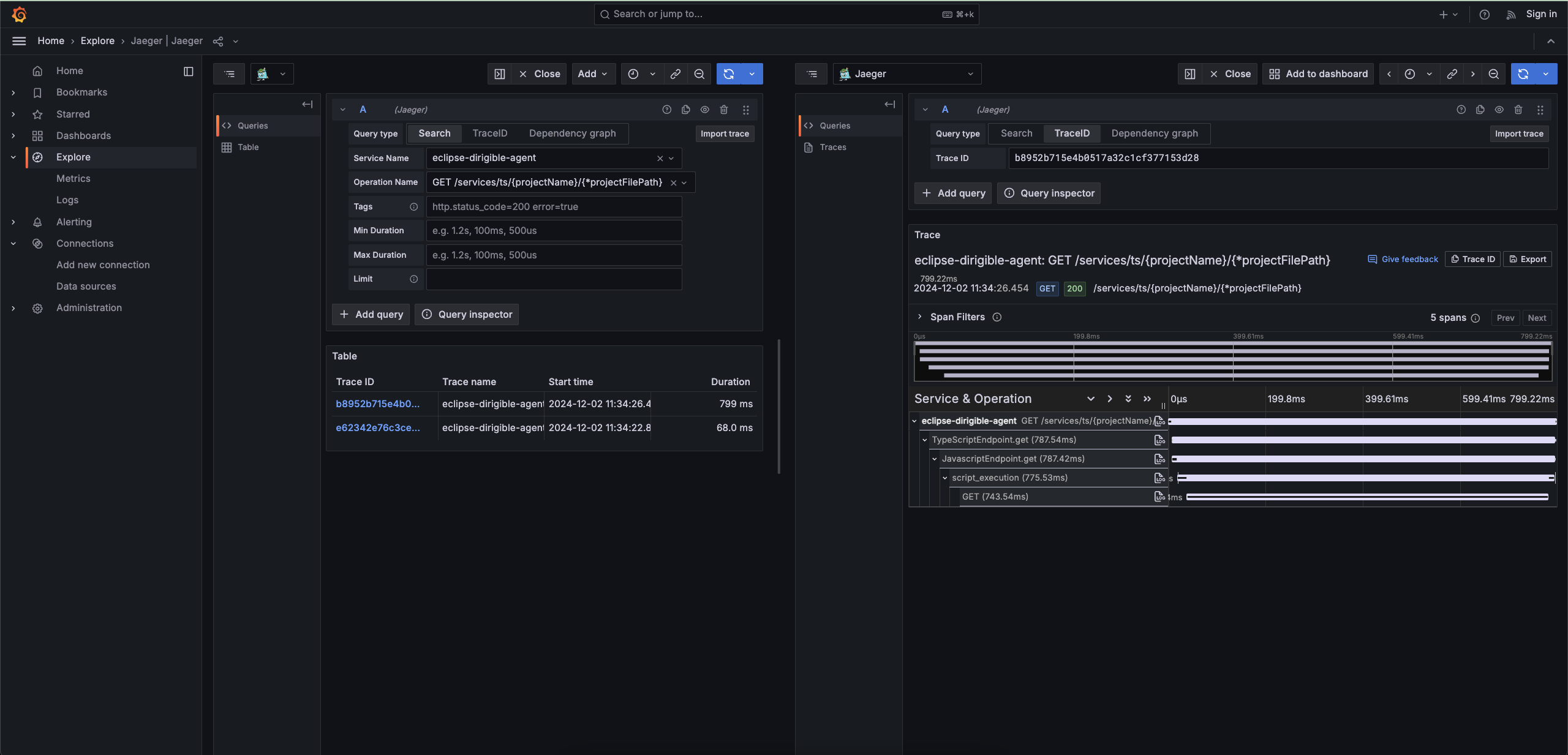

  Grafana trace example:

• Metrics
  The metrics were exported using the Prometheus API endpoint. For a more detailed exploration, visit the Grafana metrics dashboard or view them through the Prometheus UI.

  Click to expand the metrics in JSON

  {
      "status": "success",
      "data": [
          "application_ready_time_seconds",
          "application_started_time_seconds",
          "camel_exchange_event_notifier_max_seconds",
          "camel_exchange_event_notifier_seconds_bucket",
          "camel_exchange_event_notifier_seconds_count",
          "camel_exchange_event_notifier_seconds_sum",
          "camel_exchanges_inflight",
          "camel_exchanges_succeeded_total",
          "camel_exchanges_total",
          "camel_route_policy_max_seconds",
          "camel_route_policy_seconds_bucket",
          "camel_route_policy_seconds_count",
          "camel_route_policy_seconds_sum",
          "camel_routes_added",
          "camel_routes_reloaded",
          "camel_routes_running",
          "db_client_connections_create_time_milliseconds_bucket",
          "db_client_connections_create_time_milliseconds_count",
          "db_client_connections_create_time_milliseconds_sum",
          "db_client_connections_idle_min",
          "db_client_connections_max",
          "db_client_connections_pending_requests",
          "db_client_connections_usage",
          "db_client_connections_use_time_milliseconds_bucket",
          "db_client_connections_use_time_milliseconds_count",
          "db_client_connections_use_time_milliseconds_sum",
          "db_client_connections_wait_time_milliseconds_bucket",
          "db_client_connections_wait_time_milliseconds_count",
          "db_client_connections_wait_time_milliseconds_sum",
          "disk_free_bytes",
          "disk_total_bytes",
          "executor_active_threads",
          "executor_completed_tasks_total",
          "executor_pool_core_threads",
          "executor_pool_max_threads",
          "executor_pool_size_threads",
          "executor_queue_remaining_tasks",
          "executor_queued_tasks",
          "flowable_completedActivities",
          "flowable_completedProcessInstanceCount",
          "flowable_completedTaskCount",
          "flowable_completedTaskCountToday",
          "flowable_openTaskCount",
          "flowable_processDefinitionCount",
          "flowable_runningProcessInstanceCount",
          "hikaricp_connections",
          "hikaricp_connections_acquire_max_seconds",
          "hikaricp_connections_acquire_seconds_bucket",
          "hikaricp_connections_acquire_seconds_count",
          "hikaricp_connections_acquire_seconds_sum",
          "hikaricp_connections_active",
          "hikaricp_connections_creation_max_seconds",
          "hikaricp_connections_idle",
          "hikaricp_connections_max",
          "hikaricp_connections_min",
          "hikaricp_connections_pending",
          "hikaricp_connections_usage_max_seconds",
          "hikaricp_connections_usage_seconds_bucket",
          "hikaricp_connections_usage_seconds_count",
          "hikaricp_connections_usage_seconds_sum",
          "http_client_request_duration_seconds_bucket",
          "http_client_request_duration_seconds_count",
          "http_client_request_duration_seconds_sum",
          "http_server_request_duration_seconds_bucket",
          "http_server_request_duration_seconds_count",
          "http_server_request_duration_seconds_sum",
          "http_server_requests_active_active",
          "http_server_requests_active_duration_seconds",
          "http_server_requests_max_seconds",
          "http_server_requests_seconds_bucket",
          "http_server_requests_seconds_count",
          "http_server_requests_seconds_sum",
          "jvm_buffer_count_buffers",
          "jvm_buffer_memory_used_bytes",
          "jvm_buffer_total_capacity_bytes",
          "jvm_class_count",
          "jvm_class_loaded_total",
          "jvm_class_unloaded_total",
          "jvm_classes_loaded",
          "jvm_classes_unloaded_total",
          "jvm_compilation_time_milliseconds_total",
          "jvm_cpu_count",
          "jvm_cpu_recent_utilization_ratio",
          "jvm_cpu_time_seconds_total",
          "jvm_gc_concurrent_phase_time_max_seconds",
          "jvm_gc_concurrent_phase_time_seconds_bucket",
          "jvm_gc_concurrent_phase_time_seconds_count",
          "jvm_gc_concurrent_phase_time_seconds_sum",
          "jvm_gc_duration_seconds_bucket",
          "jvm_gc_duration_seconds_count",
          "jvm_gc_duration_seconds_sum",
          "jvm_gc_live_data_size_bytes",
          "jvm_gc_max_data_size_bytes",
          "jvm_gc_memory_allocated_bytes_total",
          "jvm_gc_memory_promoted_bytes_total",
          "jvm_gc_overhead",
          "jvm_gc_pause_max_seconds",
          "jvm_gc_pause_seconds_bucket",
          "jvm_gc_pause_seconds_count",
          "jvm_gc_pause_seconds_sum",
          "jvm_info",
          "jvm_memory_committed_bytes",
          "jvm_memory_limit_bytes",
          "jvm_memory_max_bytes",
          "jvm_memory_usage_after_gc",
          "jvm_memory_used_after_last_gc_bytes",
          "jvm_memory_used_bytes",
          "jvm_thread_count",
          "jvm_threads_daemon",
          "jvm_threads_live",
          "jvm_threads_peak",
          "jvm_threads_started_total",
          "jvm_threads_states",
          "logback_events_total",
          "otlp_exporter_exported_total",
          "otlp_exporter_seen_total",
          "process_cpu_time_nanoseconds_total",
          "process_cpu_usage",
          "process_files_max",
          "process_files_open",
          "process_start_time_seconds",
          "process_uptime_seconds",
          "processedLogs_total",
          "processedSpans_total",
          "quartz_job_executed_count_total",
          "quartz_job_execution_time_bucket",
          "quartz_job_execution_time_count",
          "quartz_job_execution_time_sum",
          "quartz_job_failed_count_total",
          "quartz_scheduler_running_jobs",
          "queueSize_ratio",
          "scrape_duration_seconds",
          "scrape_samples_post_metric_relabeling",
          "scrape_samples_scraped",
          "scrape_series_added",
          "spring_data_repository_invocations_max_seconds",
          "spring_data_repository_invocations_seconds_bucket",
          "spring_data_repository_invocations_seconds_count",
          "spring_data_repository_invocations_seconds_sum",
          "spring_security_authentications_active_active",
          "spring_security_authentications_active_duration_seconds",
          "spring_security_authentications_max_seconds",
          "spring_security_authentications_seconds_bucket",
          "spring_security_authentications_seconds_count",
          "spring_security_authentications_seconds_sum",
          "spring_security_authorizations_active_active",
          "spring_security_authorizations_active_duration_seconds",
          "spring_security_authorizations_max_seconds",
          "spring_security_authorizations_seconds_bucket",
          "spring_security_authorizations_seconds_count",
          "spring_security_authorizations_seconds_sum",
          "spring_security_filterchains_DefaultResourcesFilter_after_total",
          "spring_security_filterchains_DefaultResourcesFilter_before_total",
          "spring_security_filterchains_TenantContextInitFilter_after_total",
          "spring_security_filterchains_TenantContextInitFilter_before_total",
          "spring_security_filterchains_access_exceptions_after_total",
          "spring_security_filterchains_access_exceptions_before_total",
          "spring_security_filterchains_active_active",
          "spring_security_filterchains_active_duration_seconds",
          "spring_security_filterchains_authentication_anonymous_after_total",
          "spring_security_filterchains_authentication_anonymous_before_total",
          "spring_security_filterchains_authentication_basic_after_total",
          "spring_security_filterchains_authentication_basic_before_total",
          "spring_security_filterchains_authentication_form_after_total",
          "spring_security_filterchains_authentication_form_before_total",
          "spring_security_filterchains_authorization_after_total",
          "spring_security_filterchains_authorization_before_total",
          "spring_security_filterchains_context_async_after_total",
          "spring_security_filterchains_context_async_before_total",
          "spring_security_filterchains_context_holder_after_total",
          "spring_security_filterchains_context_holder_before_total",
          "spring_security_filterchains_context_servlet_after_total",
          "spring_security_filterchains_context_servlet_before_total",
          "spring_security_filterchains_cors_after_total",
          "spring_security_filterchains_cors_before_total",
          "spring_security_filterchains_header_after_total",
          "spring_security_filterchains_header_before_total",
          "spring_security_filterchains_logout_after_total",
          "spring_security_filterchains_logout_before_total",
          "spring_security_filterchains_max_seconds",
          "spring_security_filterchains_page_login_after_total",
          "spring_security_filterchains_page_login_before_total",
          "spring_security_filterchains_page_logout_after_total",
          "spring_security_filterchains_page_logout_before_total",
          "spring_security_filterchains_requestcache_after_total",
          "spring_security_filterchains_requestcache_before_total",
          "spring_security_filterchains_seconds_bucket",
          "spring_security_filterchains_seconds_count",
          "spring_security_filterchains_seconds_sum",
          "spring_security_filterchains_session_urlencoding_after_total",
          "spring_security_filterchains_session_urlencoding_before_total",
          "spring_security_http_secured_requests_active_active",
          "spring_security_http_secured_requests_active_duration_seconds",
          "spring_security_http_secured_requests_max_seconds",
          "spring_security_http_secured_requests_seconds_bucket",
          "spring_security_http_secured_requests_seconds_count",
          "spring_security_http_secured_requests_seconds_sum",
          "system_cpu_count",
          "system_cpu_usage",
          "system_load_average_1m",
          "target_info",
          "tomcat_sessions_active_current",
          "tomcat_sessions_active_max",
          "tomcat_sessions_alive_max_seconds",
          "tomcat_sessions_created_total",
          "tomcat_sessions_expired_total",
          "tomcat_sessions_rejected_total",
          "up"
      ]
  }


  Grafana metrics dashboard:

Custom Telemetry using OpenTelemetry API

In this section, we explore the custom implementations of traces and metrics for different scenarios within our sample Eclipse Dirigible application, utilizing the OpenTelemetry API. This way, we are able to monitor and troubleshoot each scenario effectively, ensuring enhanced observability and performance tuning capabilities for the application.

REST API

In Eclipse Dirigible applications, monitoring and tracing REST API requests is essential to understanding how our application handles external communications. By using OpenTelemetry, we were able to instrument the REST endpoints and capture key telemetry data, providing visibility into every request and response.

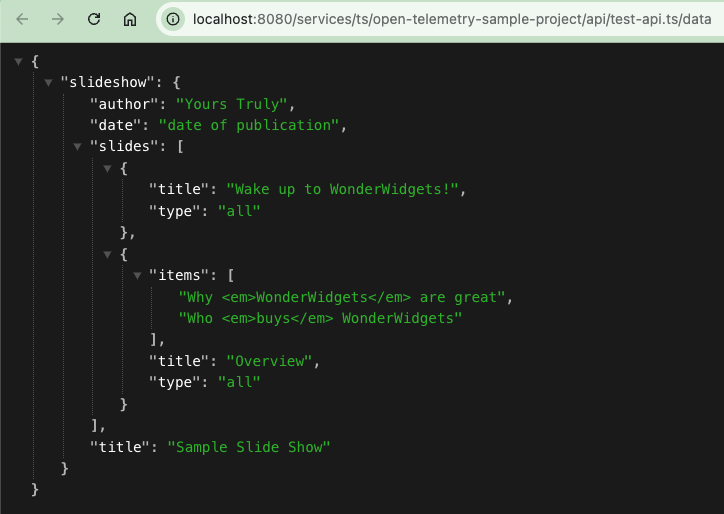

In our sample application, there is a sample REST API which calls external API to get sample data using Eclipse Dirigible HTTP Client API.

The REST API is implemented in file open-telemetry-sample-project/api/test-api.ts. Let's make a GET request to http://localhost:8080/services/ts/open-telemetry-sample-project/api/test-api.ts/data.

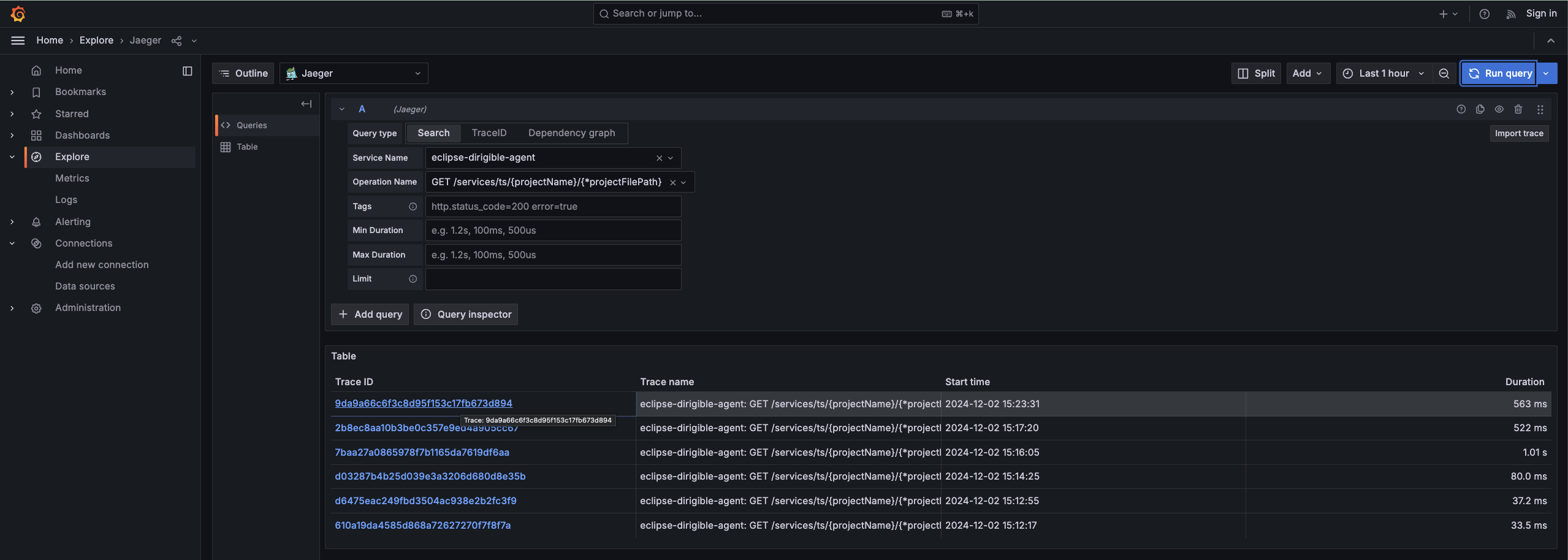

To explore the related traces:

• Go to Grafana UI
• Select Explore
• Choose Jaeger data source from the dropdown
• Select Search for Query Type
• Select Eclipse Dirigible service
• Chose GET /services/ts/{projectName}/{*projectFilePath} for Operation Name
• Click on Run query button
• Select the latest trace

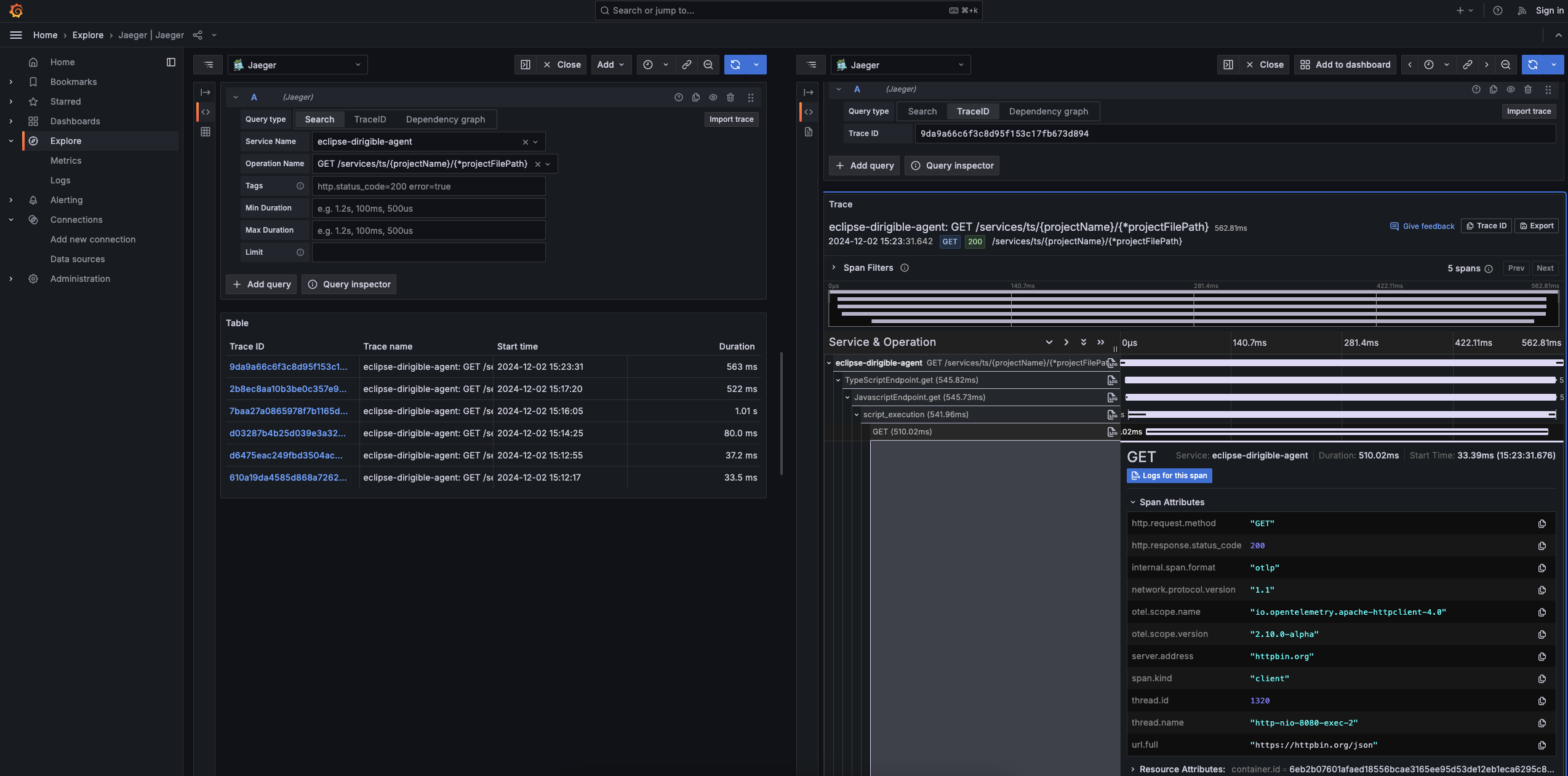

• You can see details about the different spans by selecting on them and expanding the attributes

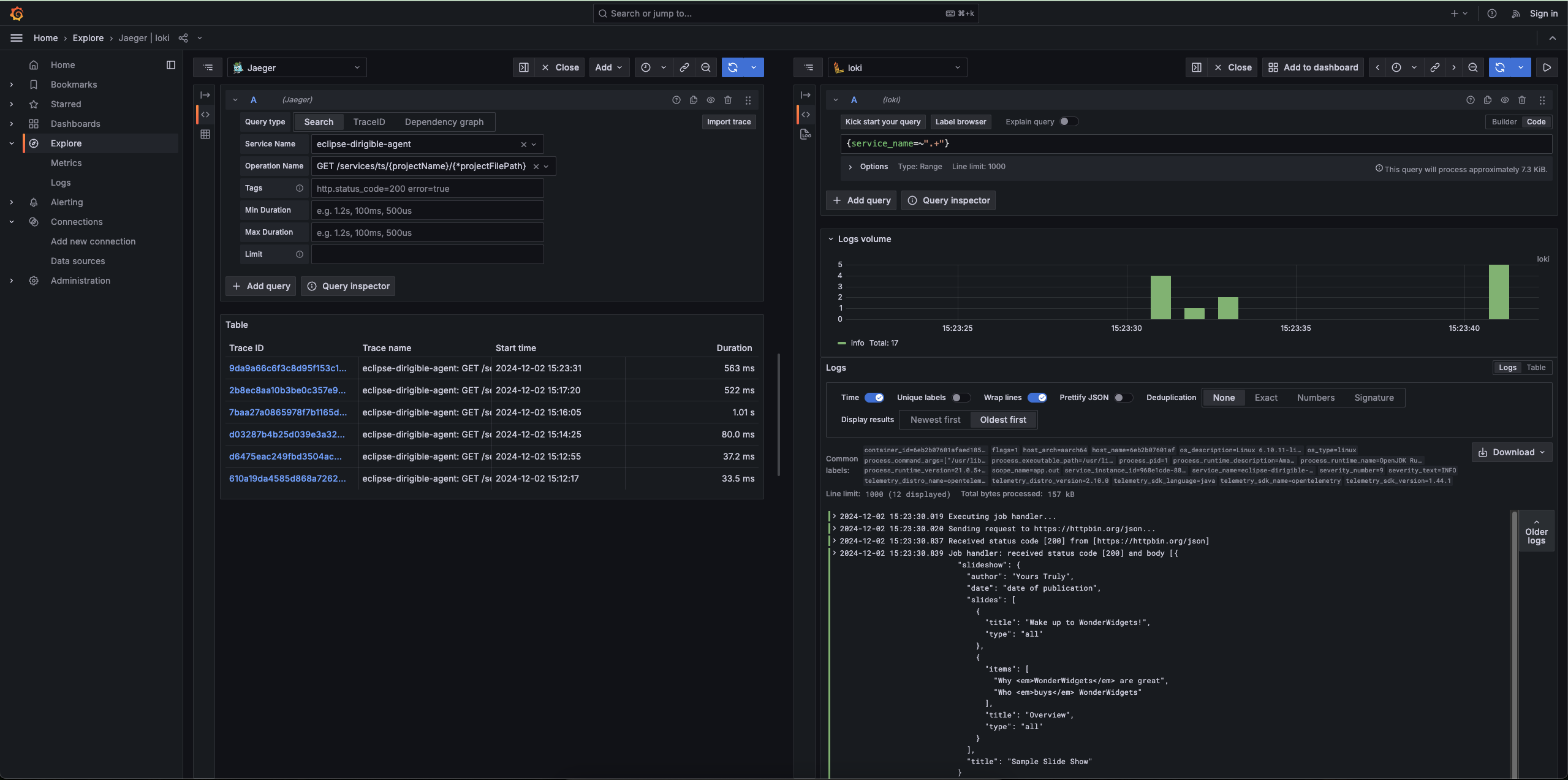

• You can also navigate to the logs related to it by clicking on Logs for this span

Jobs

This sample showcases a Quartz job that periodically calls an external API. Using OpenTelemetry, we captured telemetry data such as execution times, API request and response details, and job status. These traces provide valuable insights into the job's performance and its interaction with the external API, helping to identify bottlenecks or failures effectively.

The sample job is defined in file open-telemetry-sample-project/jobs/test-job.job. It triggers every 30 seconds, so it is not needed to trigger it manually.

Traces

To explore job traces:

• Go to Grafana UI
• Select Explore
• Choose Jaeger data source from the dropdown
• Select Search for Query Type
• Select Eclipse Dirigible service
• Chose defined.test-job for Operation Name
• Click on Run query button
• Select the latest trace

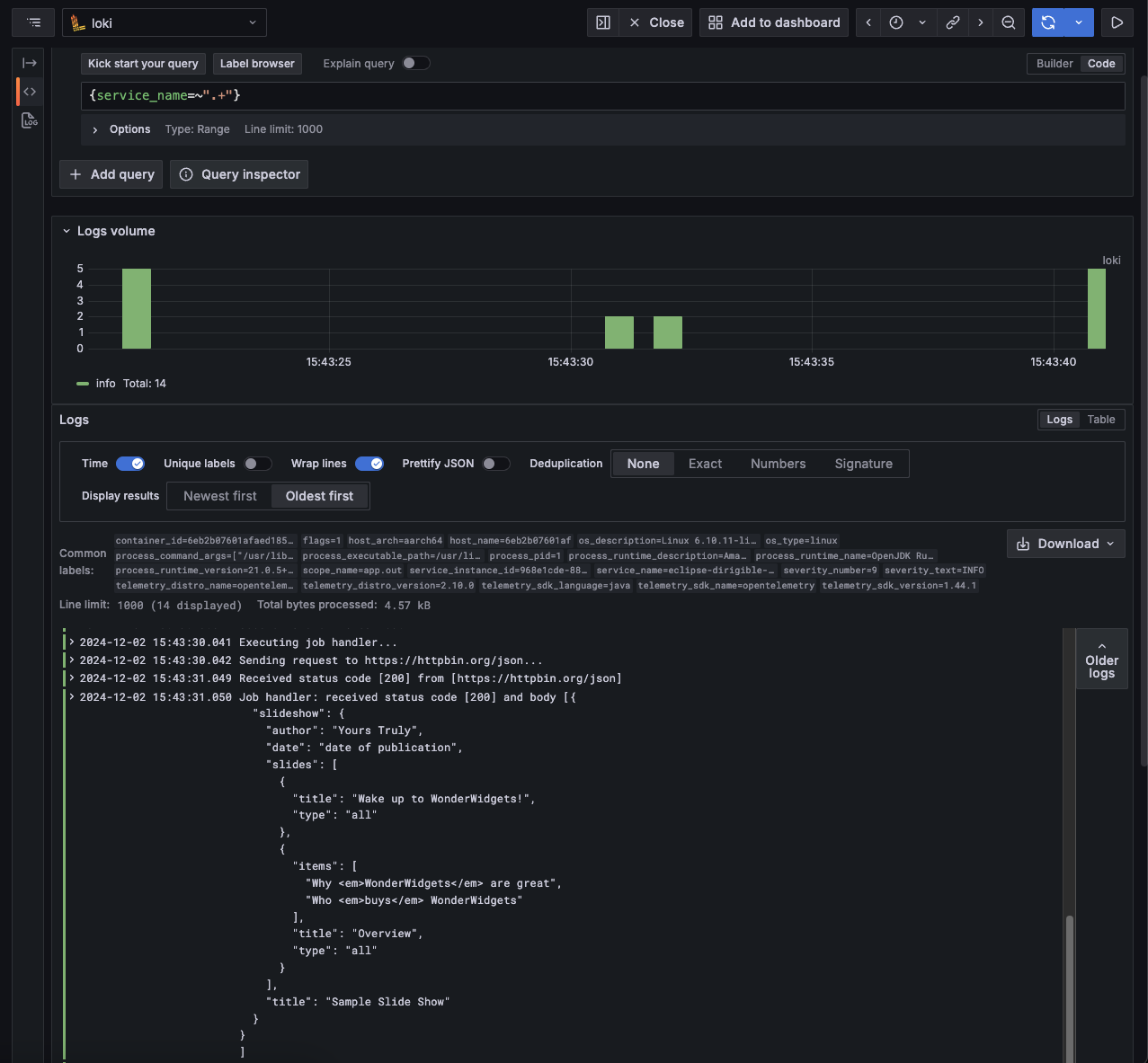

• You can see details about the trace and related logs

Metrics

We added custom metrics to monitor the execution of Quartz jobs within our application. By exposing these metrics through OpenTelemetry, we enable proactive monitoring and performance tuning for scheduled tasks.

To see all quartz related metrics:

• Go to Grafana UI
• Select Explore
• Select Metrics
• Click on New metric exploration
• Type quartz in Search metrics

BPM processes

We instrumented Flowable BPM processes to capture traces and metrics for each workflow execution. This observability helps monitor process efficiency and troubleshoot workflow bottlenecks effectively.

The sample process is defined in file open-telemetry-sample-project/bpm/test-process.bpmn.

To trigger a process execution, send POST request to the dedicated API implemented in open-telemetry-sample-project/bpm/process-trigger-service.ts.

curl --location --request POST 'http://localhost:8080/services/ts/open-telemetry-sample-project/bpm/process-trigger-service.ts' \
--header 'Authorization: Basic YWRtaW46YWRtaW4='

Traces

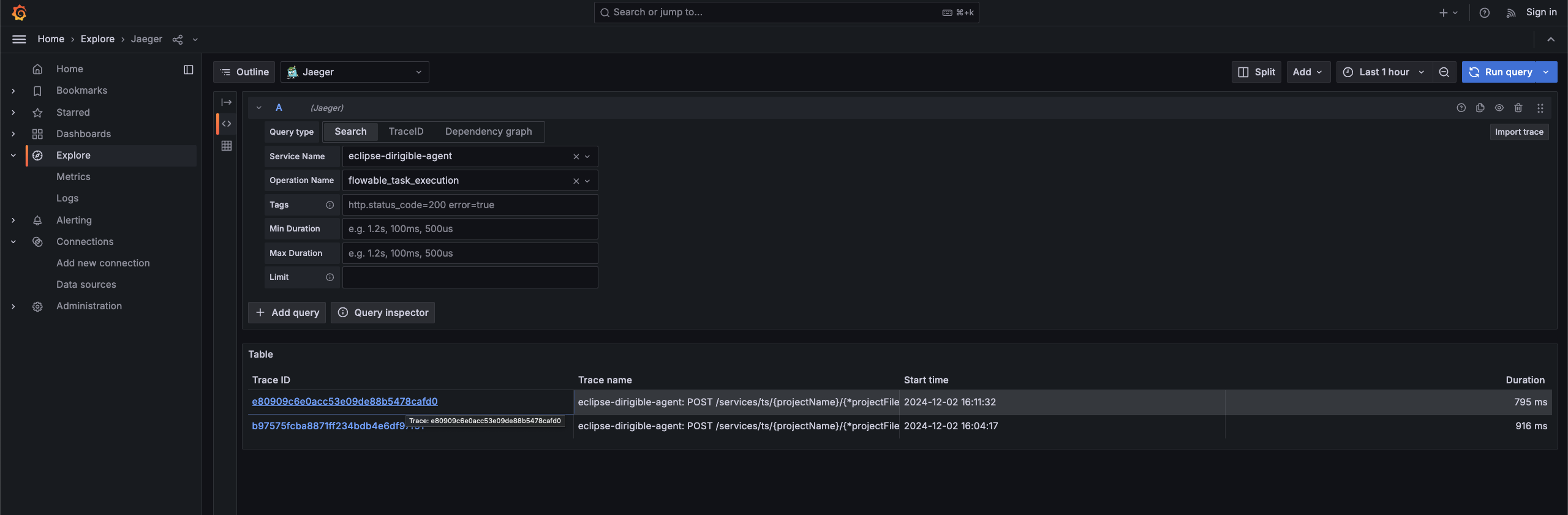

To explore job traces:

• Go to Grafana UI
• Select Explore
• Choose Jaeger data source from the dropdown
• Select Search for Query Type
• Select Eclipse Dirigible service
• Chose flowable_task_execution for Operation Name
• Click on Run query button
• Select the latest trace

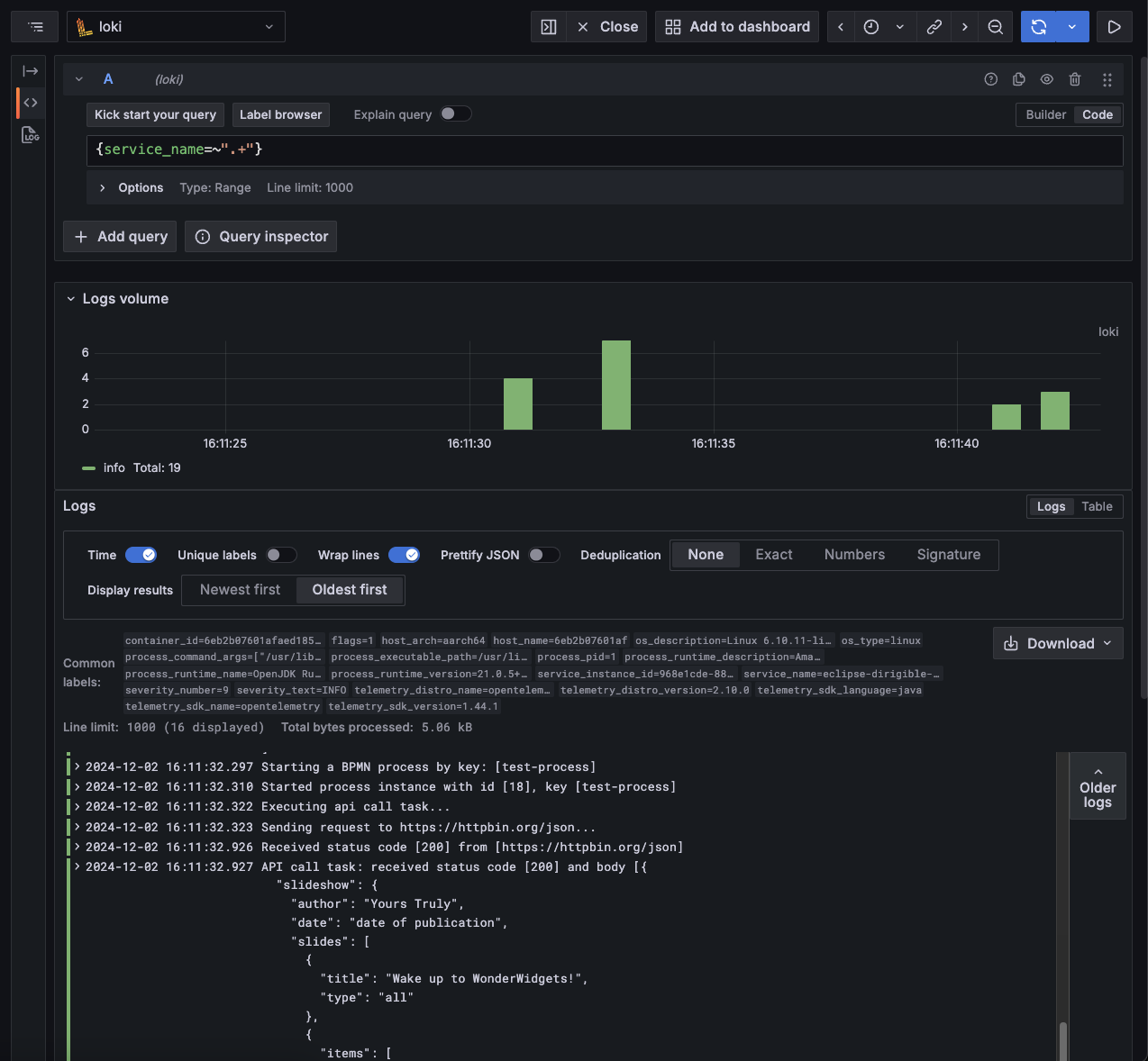

• You can see details about the trace and related logs

Metrics

In addition to tracing, we added custom metrics to monitor Flowable BPM processes.

To see all Flwoable related metrics:

• Go to Grafana UI
• Select Explore
• Select Metrics
• Click on New metric exploration
• Type flowable in Search metrics

Camel routes

We enabled tracing and metrics for Apache Camel routes to gain insights into their execution and performance.

There are two camel routes in the sample application. One http route defined in open-telemetry-sample-project/camel/http-route.camel

and one cron route in open-telemetry-sample-project/camel/cron-route.camel

Http route traces

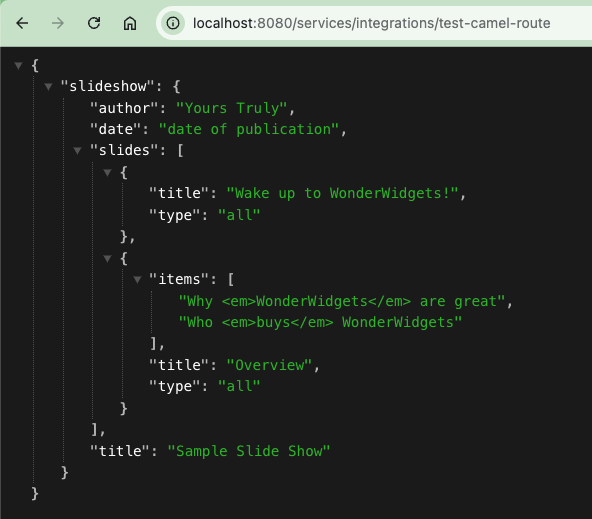

To trigger the route execution, send GET request to http://localhost:8080/services/integrations/test-camel-route.

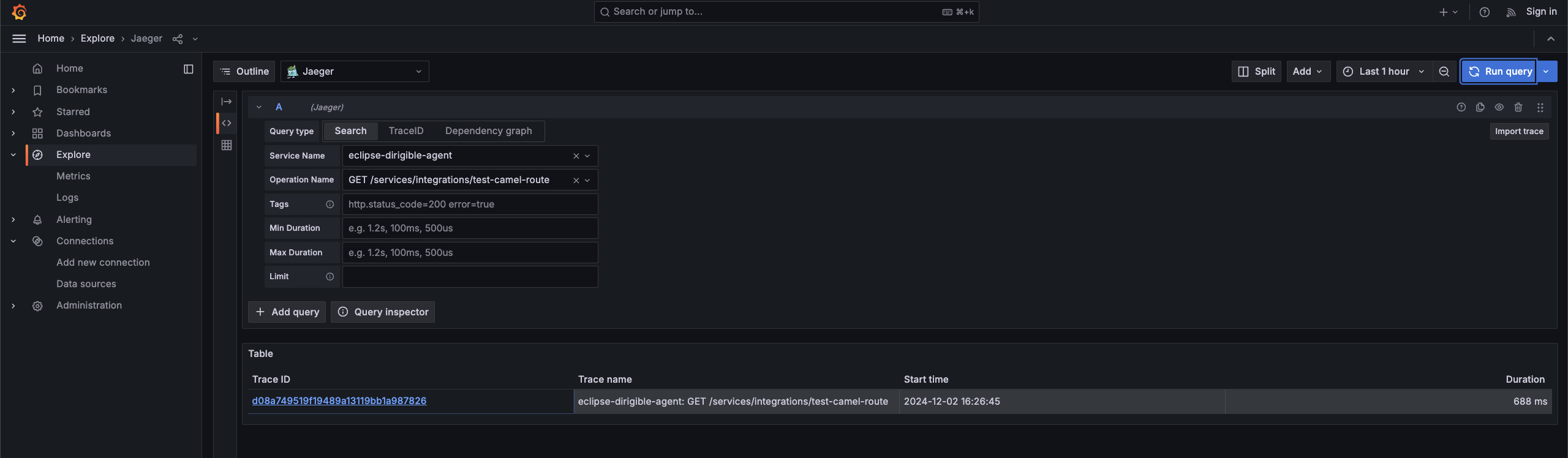

To explore route traces:

• Go to Grafana UI
• Select Explore
• Choose Jaeger data source from the dropdown
• Select Search for Query Type
• Select Eclipse Dirigible service
• Chose GET /services/integrations/test-camel-route for Operation Name
• Click on Run query button

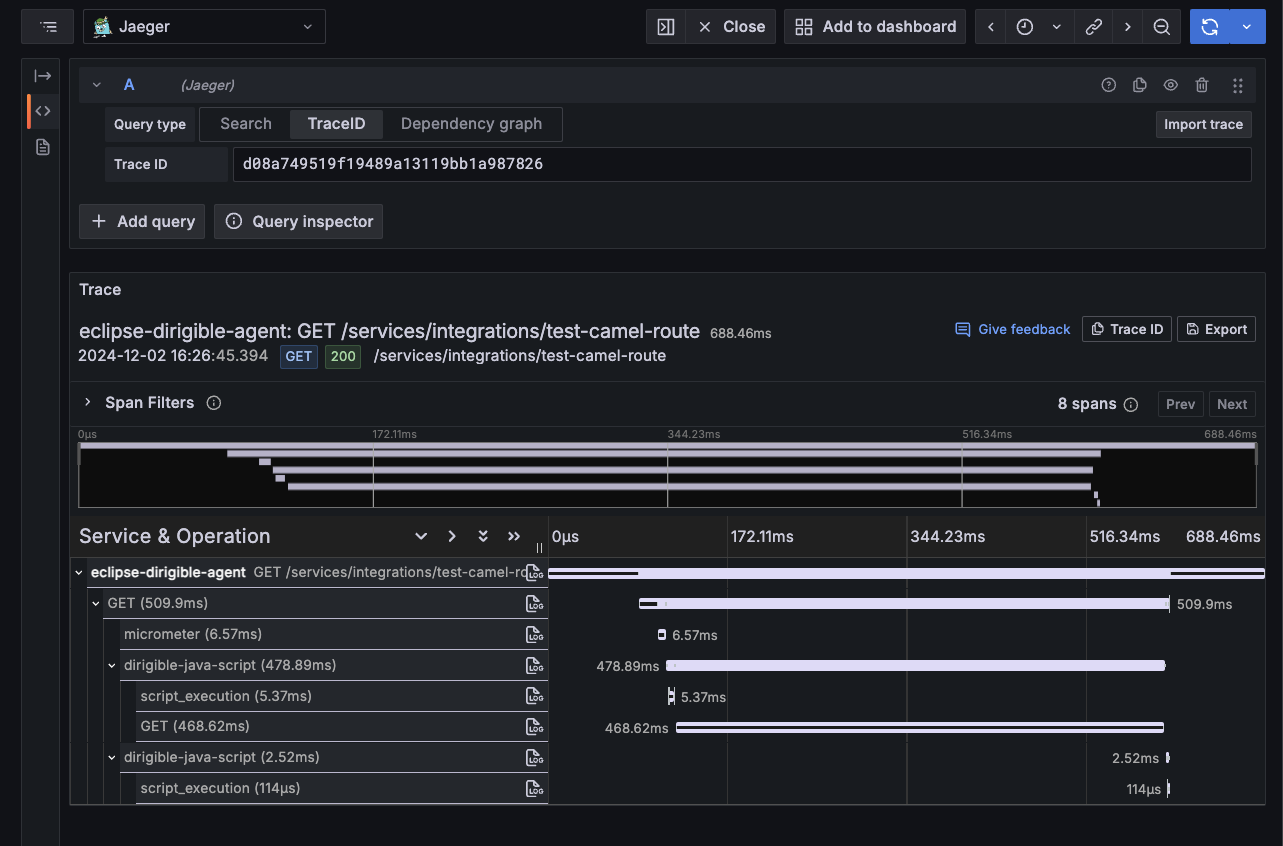

• Select the latest trace

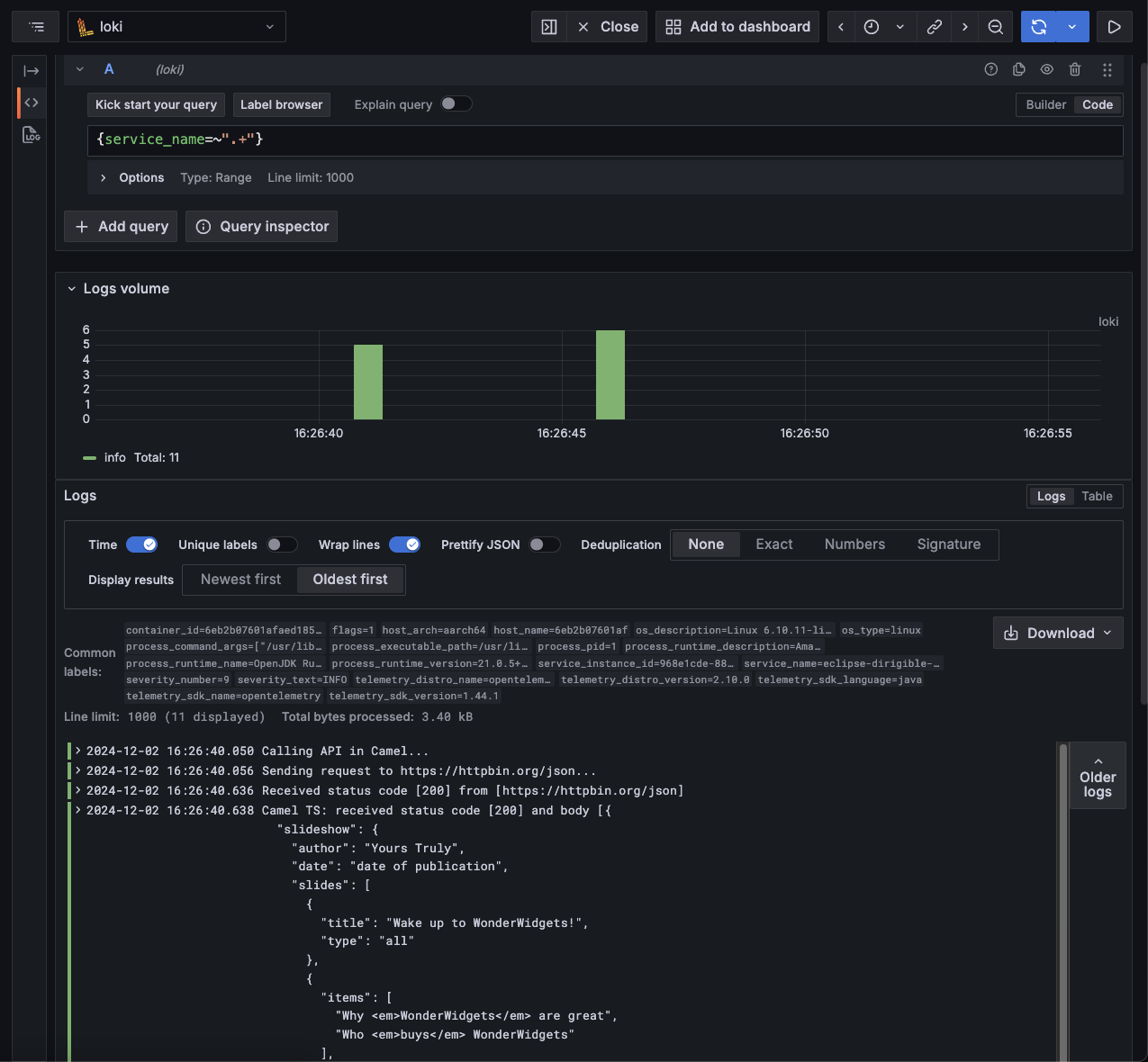

• You can see details about the trace and related logs

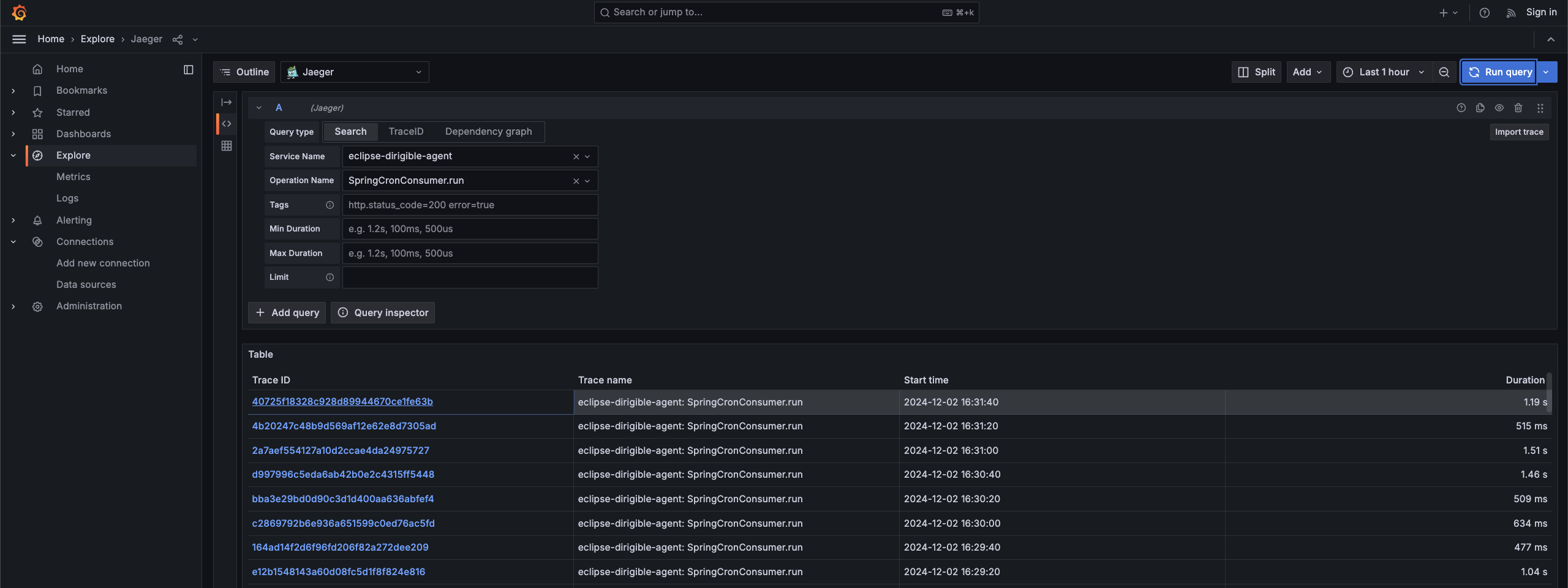

Cron route traces

Cron route triggers every 20 seconds, so you don't need to trigger it explicitly. To explore route traces:

• Go to Grafana UI
• Select Explore
• Choose Jaeger data source from the dropdown
• Select Search for Query Type
• Select Eclipse Dirigible service
• Chose SpringCronConsumer.run for Operation Name
• Click on Run query button
• Select the latest trace
• You can see details about the trace and related logs

Metrics

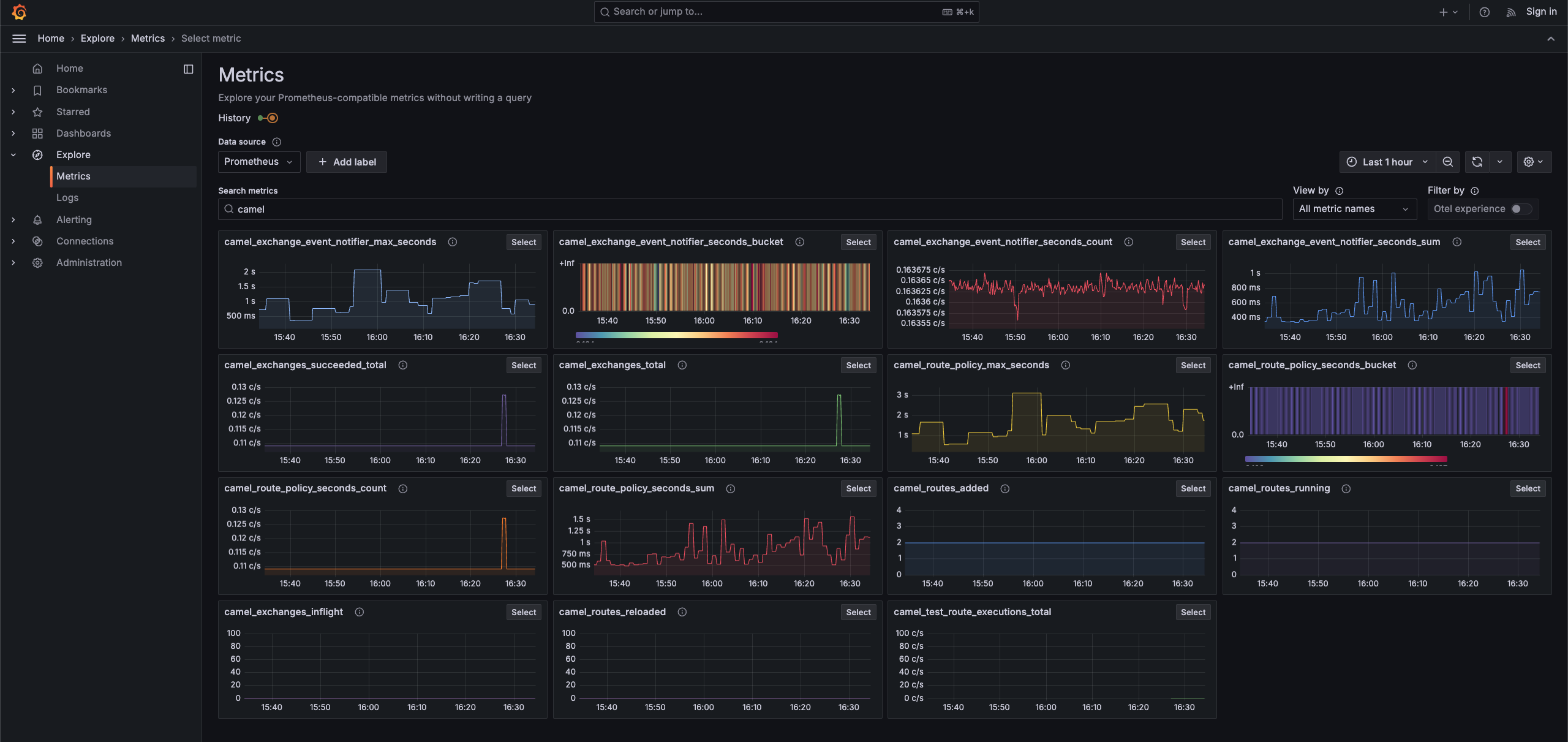

In addition to tracing, we added custom metrics to monitor Camel.

To see all Camel related metrics:

• Go to Grafana UI
• Select Explore
• Select Metrics
• Click on New metric exploration
• Type camel in Search metrics

Logs

Our local observability setup incorporates Loki to manage and analyze logs generated by the application. Logs provide essential contextual information, capturing detailed runtime events that complement traces and metrics.

With Loki's seamless integration into Grafana, we can query, visualize, and correlate logs with other telemetry data, enabling efficient debugging and performance optimization.

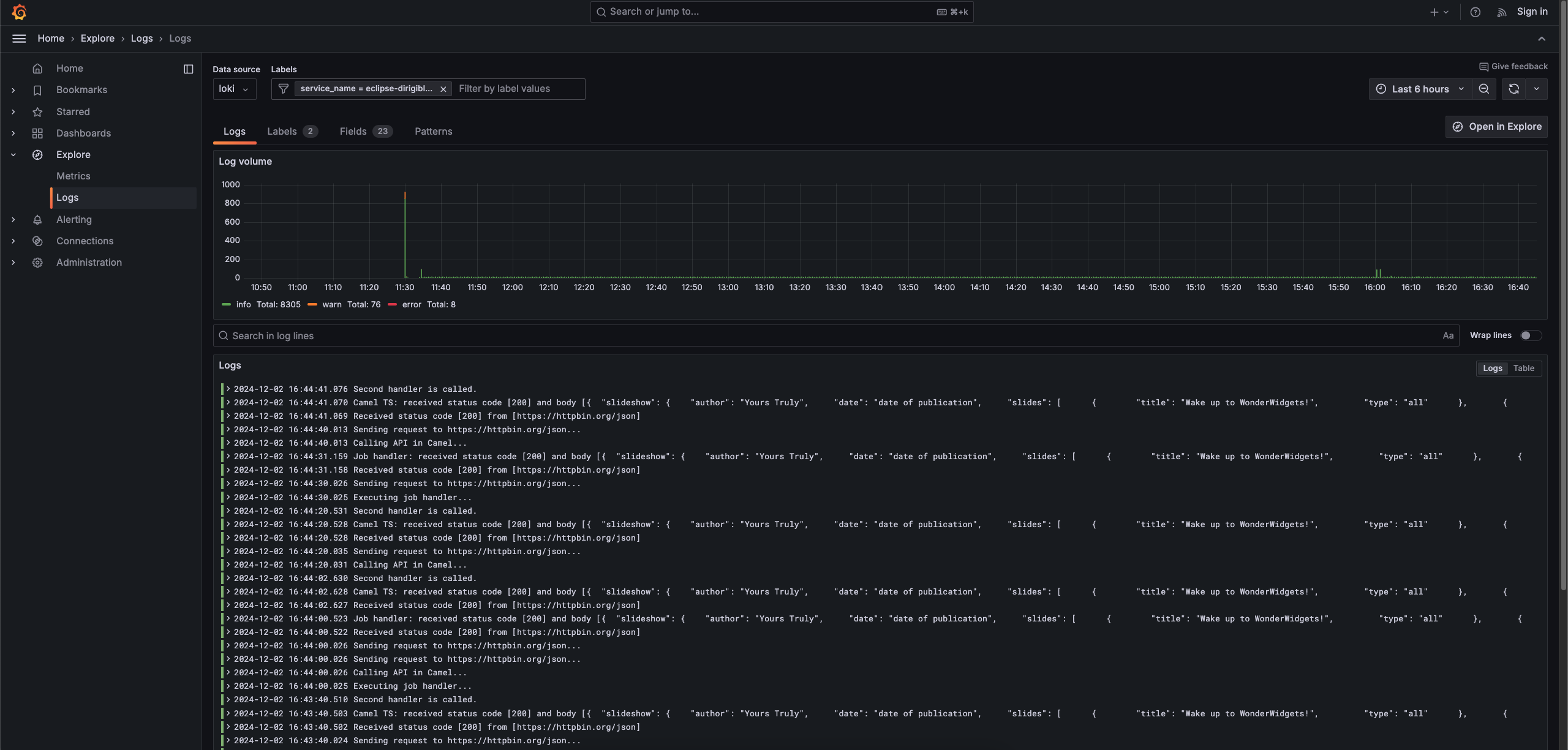

To explore the logs:

• Go to Grafana UI
• Select Explore
• Select Logs
• Select Eclipse Dirigible service
• You can click on Open in Explore button to open the explore view. There you can write more advanced search queries.

Unified Observability with Grafana Dashboards and Alerts

Grafana serves as the central hub for visualizing and analyzing telemetry data in our observability stack. By integrating traces, metrics, and logs from sources like Jaeger, Prometheus, and Loki, it enables the creation of custom dashboards tailored to specific monitoring needs.

Additionally, Grafana supports setting up real-time alerts based on predefined thresholds or anomalies, ensuring proactive issue resolution and system reliability. This unified view empowers teams to monitor, troubleshoot, and optimize application performance seamlessly.

Summary

Integrating OpenTelemetry into the Eclipse Dirigible project significantly enhances its enterprise readiness by providing deep observability into the application's performance and behavior. With custom traces and metrics for key components like REST endpoints, Quartz jobs, Flowable processes, and Apache Camel routes, the integration allows for precise monitoring and troubleshooting.

Grafana plays a crucial role by enabling the creation of custom dashboards and real-time alerts, providing a unified view of the system’s health. This setup not only supports proactive issue resolution but also empowers teams to optimize performance, ensuring that Eclipse Dirigible meets the demanding needs of enterprise environments.
