Bookstore Application - API

Overview

This section shows how to create the API layer for the Bookstore application. It contains a Books REST API.

Steps

REST API

  1. Right click on the babylon-project project and select New → Folder.
  2. Enter api for the name of the folder.
  3. Right click on the api folder and select New → TypeScript Service.
  4. Enter books.ts for the name of the TypeScript Service.

  5. Replace the content the following code:

    import { rs } from "sdk/http";
import { BookRepository, Book } from '../data/BookRepository';

const repository = new BookRepository();

rs.service()
    .resource("")
    .get(function (ctx, request, response) {
        const entities: Book[] = repository.list();

        response.setContentType("application/json");
        response.setStatus(200);
        response.println(JSON.stringify(entities));
    }).produces(["application/json"])

    .resource("{id}")
    .get(function (ctx, request, response) {
        const id: number = ctx.pathParameters.id;
        const entity: Book = repository.findById(id);

        response.setContentType("application/json");
        if (entity) {
            response.setStatus(200);
            response.println(JSON.stringify(entity));
        } else {
            response.setStatus(404);
            response.println(JSON.stringify({
                code: 404,
                message: "Book not found"
            }));
        }
    }).produces(["application/json"])

    .resource("/count")
    .get(function (ctx, request, response) {
        const count: number = repository.count();

        response.setStatus(200);
        response.println(`${count}`);
    })

    .resource("")
    .post(function (ctx, request, response) {
        const entity = request.getJSON();

        entity.id = repository.create(entity);

        response.setContentType("application/json");
        response.setStatus(201);
        response.setHeader("Content-Location", `/services/ts/babylon-project/service/Books.ts/${entity.id}`);
        response.println(JSON.stringify(entity));
    }).produces(["application/json"])

    .resource("{id}")
    .put(function (ctx, request, response) {
        const entity = request.getJSON();
        entity.id = ctx.pathParameters.id;

        repository.update(entity);

        response.setContentType("application/json");
        response.setStatus(200);
        response.println(JSON.stringify(entity));
    }).produces(["application/json"])

    .resource("{id}")
    .delete(function (ctx, request, response) {
        const id: number = ctx.pathParameters.id;

        const entity: Book = repository.findById(id);

        if (entity) {
            repository.deleteById(id);
            response.setStatus(204);
        } else {
            response.setContentType("application/json");
            response.setStatus(404);
            response.println(JSON.stringify({
                code: 404,
                message: "Book not found"
            }));
        }
    }).produces(["*/*"])
    .execute();

Save & Publish

After saving the file right click on the project and select Publish in order to run the compilation and the deployment of the TypeScript Service.

The tsconfig.json and project.json files should be present at the project root in order to run the compilation (they can be found in the Bookstore Application - Database tutorial).

REST API Execution

A GET to the root path of the REST API request is triggered by selecting the books.ts file and open the Preview view. The TypeScript Service is available at the http://localhost:8080/services/ts/babylon-project/api/books.ts URL. It can be accessed in a separate browser tab, consumed by a third-party application or API tools like Postman or cURL.

https/rs

Take a look at the http/rs documentation for more details about the API.

OpenAPI

  1. Right click on the babylon-project/api folder and select New → File.
  2. Enter books.openapi for the name of the file.

  3. Replace the content with the following definition:

    openapi: 3.0.3

info:
  title: Bookstore Application
  description: Bookstore application based on the following tutorial - [https://www.dirigible.io/help/tutorials/application-development/bookstore/](https://www.dirigible.io/help/tutorials/application-development/bookstore/).
  contact:
    name: Eclipse Dirigible
    url: https://dirigible.io
  license:
    name: Eclipse Public License - v 2.0
    url: https://github.com/dirigiblelabs/tutorial-babylon-project/blob/master/LICENSE
  version: 1.0.0

servers:
  - url: /services/ts

tags:
  - name: Books

paths:
  /babylon-project/api/books.ts:
    get:
      tags:
        - Books
      responses:
        200:
          content:
            application/json:
              schema:
                type: array
                items:
                  $ref: '#/components/schemas/Book'
    post:
      tags:
        - Books
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/Book'
      responses:
        201:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Book'
        400:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'

  /babylon-project/api/books.ts/{id}:
    get:
      tags:
        - Books
      parameters:
        - name: id
          in: path
          required: true
          schema:
            type: integer
            example: 10001
      responses:
        200:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Book'
        404:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
              example:
                code: 404
                message: Not Found
    put:
      tags:
        - Books
      parameters:
        - name: id
          in: path
          required: true
          schema:
            type: integer
            example: 10001
      requestBody:
        required: true
        content:
          application/json:
            schema:
              $ref: '#/components/schemas/Book'
      responses:
        200:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Book'
        400:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
        404:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
              example:
                code: 404
                message: Not Found
    delete:
      tags:
        - Books
      parameters:
        - name: id
          in: path
          required: true
          schema:
            type: integer
            example: 10000
      responses:
        204:
          description: The resource was deleted successfully.
        404:
          content:
            application/json:
              schema:
                $ref: '#/components/schemas/Error'
              example:
                code: 404
                message: Not Found
components:
  schemas:
    Error:
      type: object
      properties:
        code:
          type: integer
          example: 400
        message:
          type: string
          example: Bad Request

    Book:
      type: object
      properties:
        id:
          type: integer
        isbn:
          type: string
          maxLength: 17
          pattern: ^\d{3}-\d{1}-\d{3}-\d{5}-\d{1}$
          example: 978-1-599-86977-3
        title:
          type: string
          maxLength: 120
          example: The Art of War
        publisher:
          type: string
          maxLength: 120
          example: Filiquarian
        date:
          type: string
          format: date
          example: "2006-01-01"
        price:
          type: number
          format: float
          minimum: 0
          example: 18.99

OpenAPI

Save & Publish

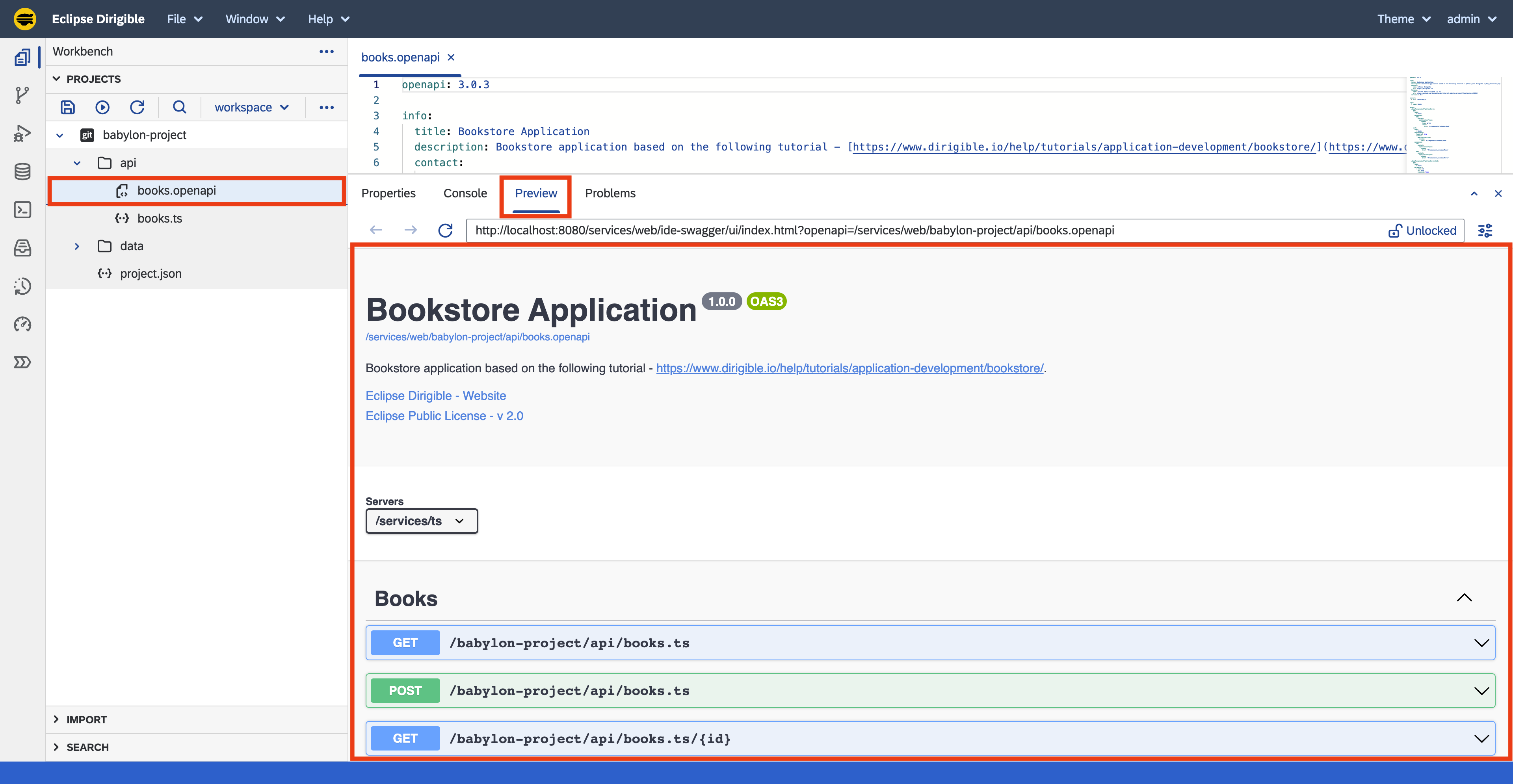

Saving the file will trigger a Publish action, which will build and deploy the OpenAPI definition. To display the embedded SwaggerUI select the books.openapi file and open the Preview view. The SwaggerUI can be accessed at http://localhost:8080/services/web/ide-swagger/ui/index.html?openapi=/services/web/babylon-project/api/books.openapi

Note: All published OpenAPI definitions can be seen at http://localhost:8080/services/web/ide-swagger/ui/

Next Steps

Section Completed

After completing the steps in this tutorial, you would have:

  • REST API and business logic to perform CRUD operations on the Book entity.

Continue to the User Interface section to build a UI for the Book entity.

Note: The complete content of the Bookstore tutorial is available at: https://github.com/dirigiblelabs/tutorial-babylon-project
